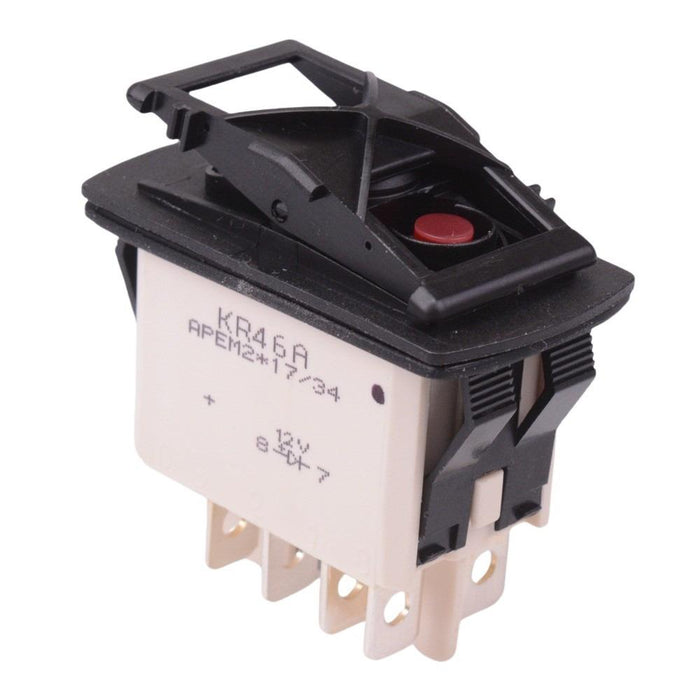

KR46CAKDXG On-On Auto Rocker Switch Red 12V illuminated DPDT IP68
by APEM
SKU 490046
MPN: KR46CAKDXG
Availability:
9 in stock
Original price
£16.57
-
Original price
£16.57
Original price
£16.57
£16.57
£16.57
-
£16.57
Current price
£16.57

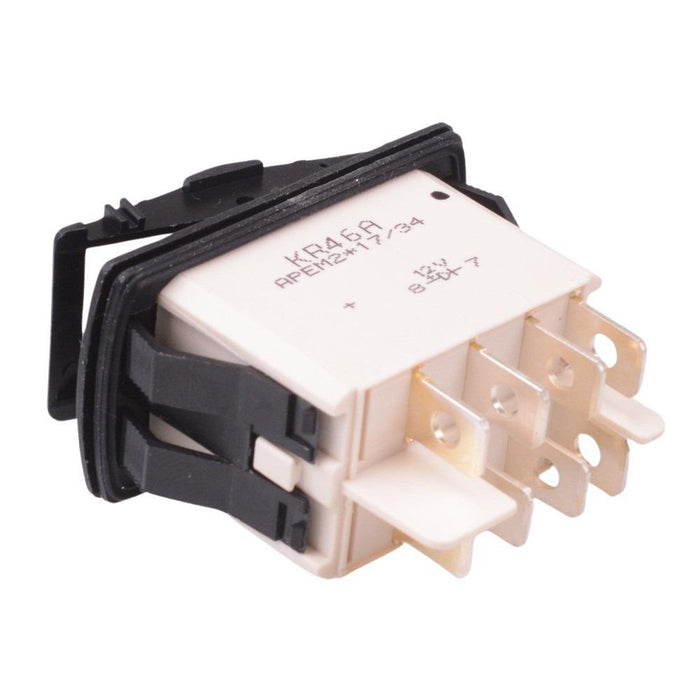

The KR46CAKDXG is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-On DPDT contacts Solder/Quick connect terminals 12V Red illumination IP68 Rated Protection Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
