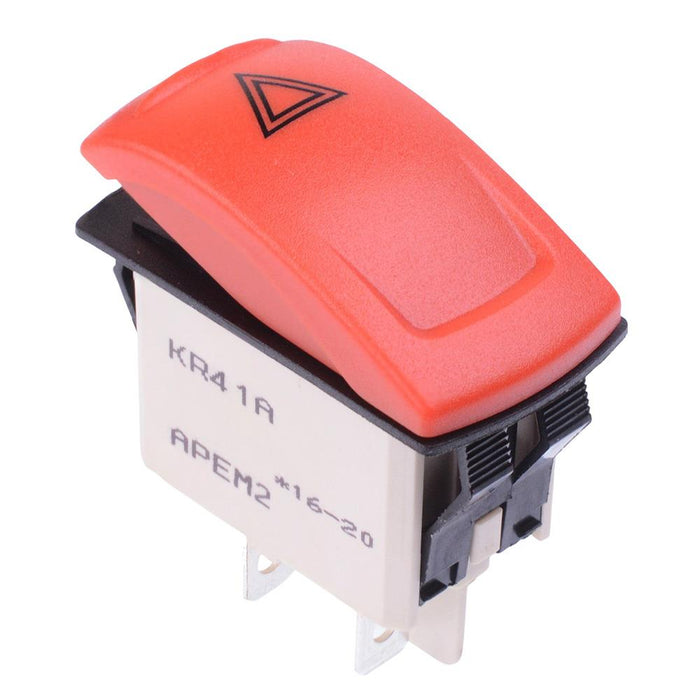

KR412AXXXA16N13XXXX APEM On-Off Red Hazard Warning Light Automotive Rocker Switch DPST

by APEM
SKU 487829

MPN: KR412AXXXA16N13XXXX

Availability:
27 in stock
Original price £14.47 - Original price £14.47
Original price
£14.47 Inc VAT
£14.47 - £14.47
Current price £14.47 Inc VAT
The KR412AXXXA16N13XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring DPST contacts and hazard warning symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Hazard warning light symbol
  • On-Off DPST contacts
  • Solder / quick connect terminals
  • Silver contacts
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPST
    Contact material Silver
    Contact rating 10A 24VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 24VDC
    Request a quote
