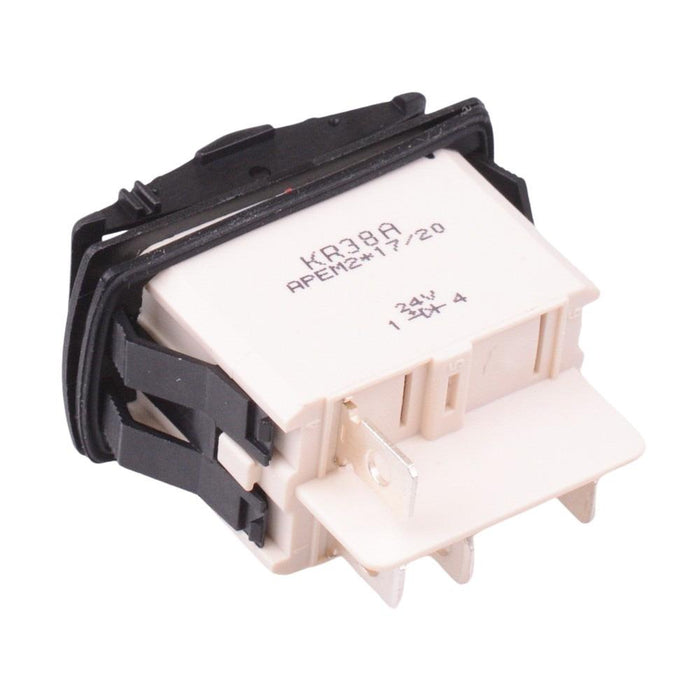

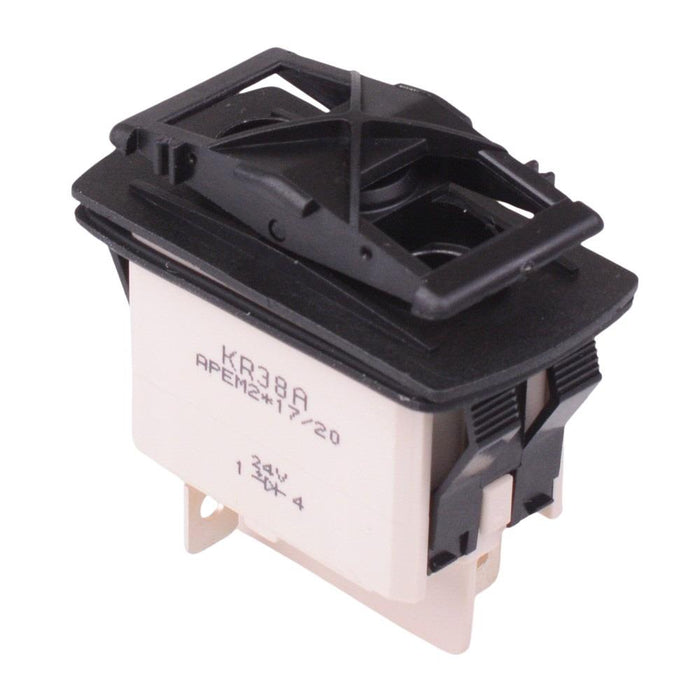

KR382AKJXA On-Off-(On) Auto Rocker Switch Red 24V illuminated SPDT IP68
by APEM
SKU 490041
MPN: KR382AKJXA
Availability:
40 in stock
Original price
£15.83
-
Original price
£15.83
Original price
£15.83
Inc VAT
£15.83
-
£15.83
Current price
£15.83
Inc VAT
The KR382AKJXA is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-Off-(On) momentary SPDT contacts IP68 Rated Protection 24V Red illumination Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching / Momentary |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 24V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP68 |
| Switch operation | On-Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
