KR36CAXXLG APEM On-On Yellow LED 24V Automotive Rocker Switch SPDT
by APEM
SKU 487979
MPN: KR36CAXXLG
Availability:
22 in stock
Original price
£14.79
-
Original price
£14.79
Original price
£14.79
Inc VAT
£14.79
-
£14.79
Current price
£14.79
Inc VAT

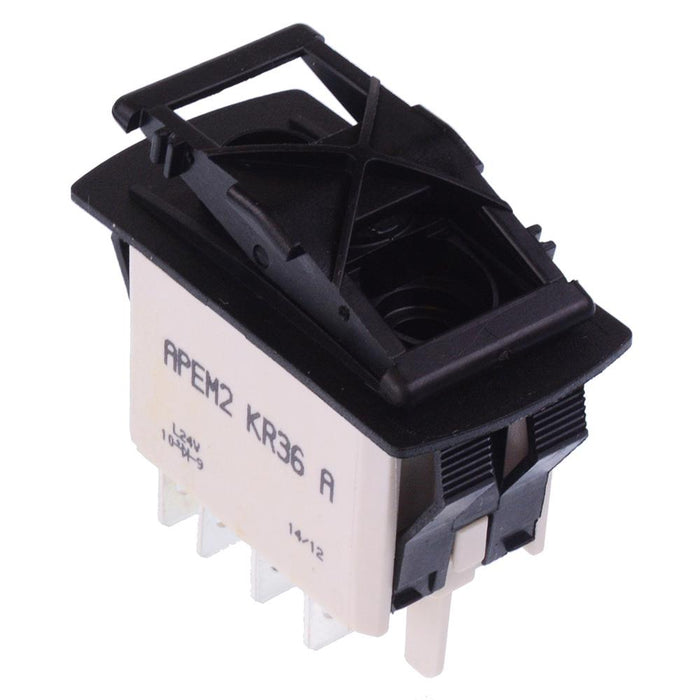

The KR36CAXXLG is an attractive rugged automotive rocker switch from the KR series by APEM, yellow 24V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Yellow LED in 1 position 24V LED voltage On-On SPDT contacts Solder / quick connect terminals Silver contacts Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 10A 24VDC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 24VDC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8-4.6mm |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
