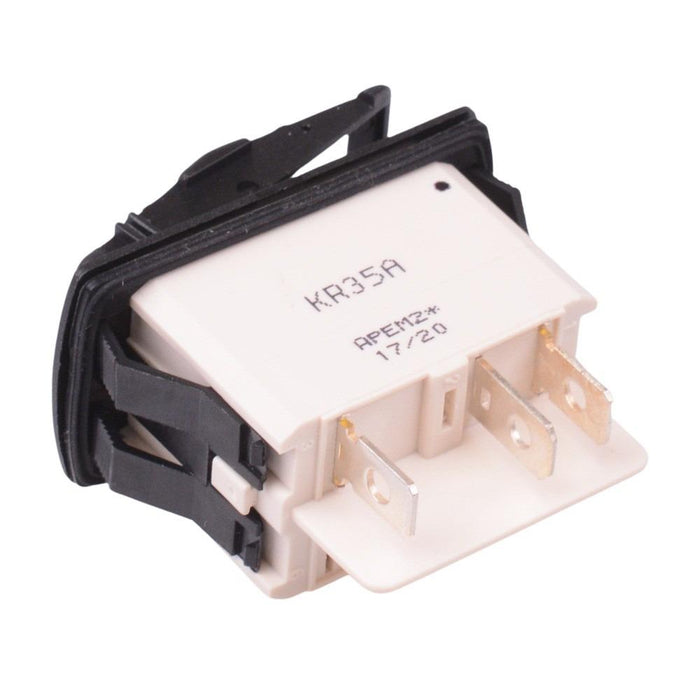

KR352AKXXA (On)-On 24V Auto Rocker Switch SPDT IP68
by APEM
SKU 490037
MPN: KR352AKXXA
Availability:
40 in stock
Original price
£11.68
-
Original price
£11.68
Original price
£11.68
Inc VAT
£11.68
-
£11.68
Current price
£11.68
Inc VAT
The KR352AKXXA is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
(On)-On SPDT contacts IP68 Rated Protection Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP68 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
