KR312AXFXD22N15XXXX APEM On-Off Yellow 12V illuminated Automotive Rocker Switch SPST
by APEM
SKU 487720
MPN: KR312AXFXD22N15XXXX
Availability:
22 in stock
Original price
£13.72
-
Original price
£13.72
Original price
£13.72
£13.72
-
£13.72
Current price
£13.72

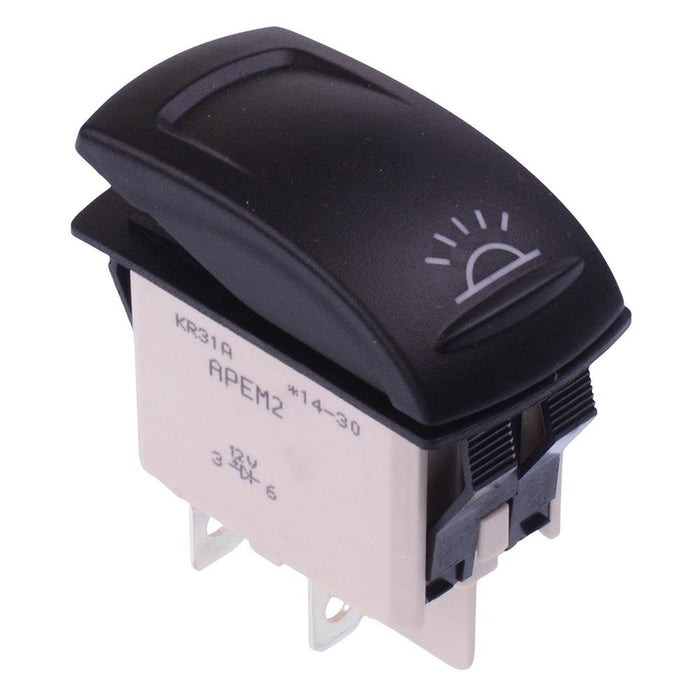

The KR312AXFXD22N15XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring 12V illumination and light symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Universal light symbol On-Off SPST contacts Yellow 12V LED Solder / quick connect terminals Silver contacts Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
