KL46CAKLG225N01A6 On-On Yellow 24V illuminated Locking Rocker Switch DPDT IP68
by APEM
SKU 490031
MPN: KL46CAKLG225N01A6
Availability:
38 in stock
Original price
£26.27
-
Original price
£26.27
Original price
£26.27
Inc VAT
£26.27
-
£26.27
Current price
£26.27
Inc VAT

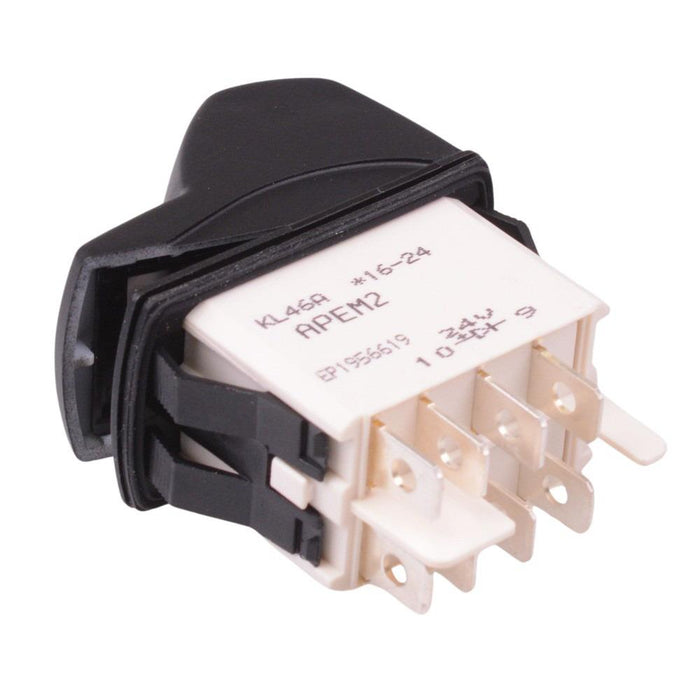

The KL46CAKJG225N01A6 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V yellow illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.
On-On operation DPDT contacts IP68 protection rating One protected position Yellow 24V illumination Quick connect terminals Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 24V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP68 |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
