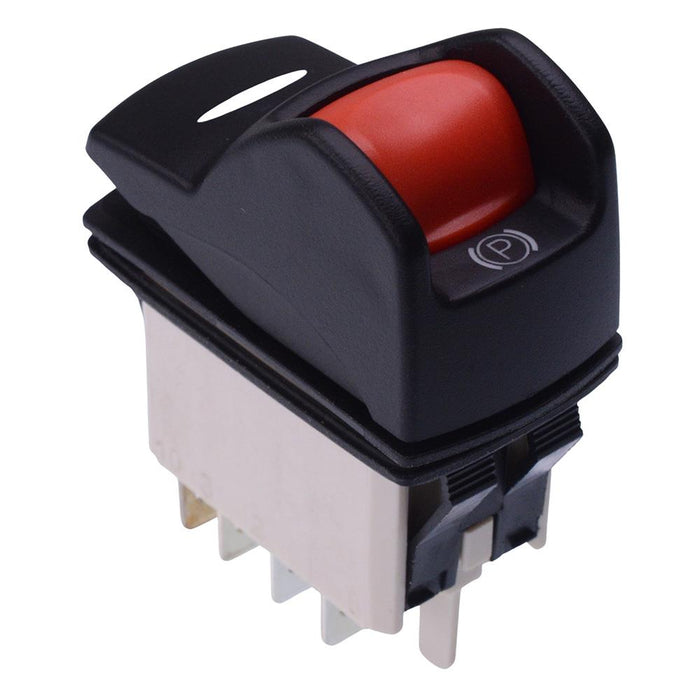

KL46CAKJG226SA6LP APEM On-On Parking Brake Red 24V Locking Power Rocker Switch DPDT IP68

by APEM
SKU 487761

MPN: KL46CAKJG226SA6LP

Availability:
10 in stock
Original price £29.86 - Original price £29.86
Original price
£29.86 Inc VAT
£29.86 - £29.86
Current price £29.86 Inc VAT
The KL46CAKJG226SA6LP is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commerical vehicle applications.

  • Parking brake symbol
  • On-On operation
  • DPDT contacts
  • Red 24V illumination
  • IP68 protection rating
  • One protected position
  • 6.35mm quick connect terminals
  • Compatible with U2292 and U3152 connector
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 10A 24VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 24VDC
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Protection level IP68
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 24VDC
