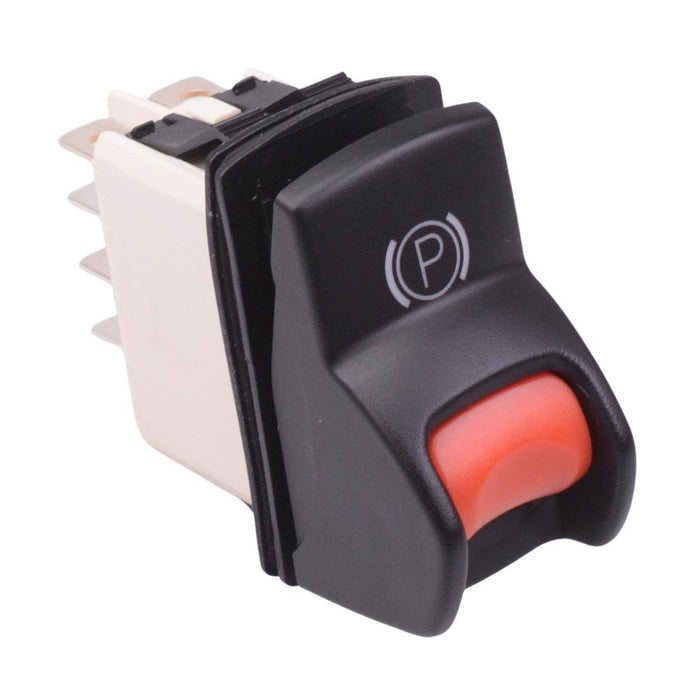

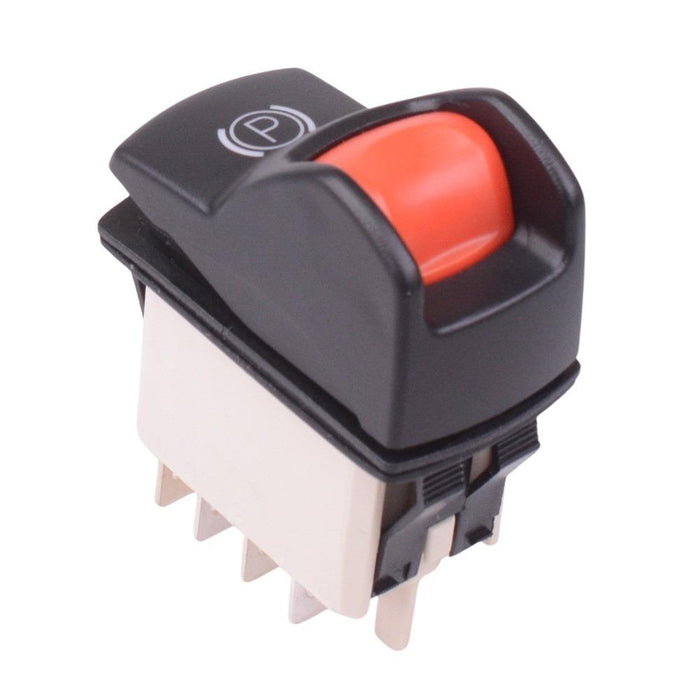

KL36CAKDG226SXXA6 On-On Red 12V illuminated Locking Power Rocker Switch SPDT IP68
by APEM
SKU 490027
MPN: KL36CAKDG226SXXA6
Availability:
9 in stock
Original price
£19.10
-
Original price
£19.10
Original price
£19.10
Inc VAT
£19.10
-
£19.10
Current price
£19.10
Inc VAT
The KL36CAKDG226SXXA6 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 12V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.
On-On operation DPDT contacts Red 12V illumination IP68 protection rating One protected position Quick connect terminals Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP68 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
