Kitronik Round USB White LED Lamp

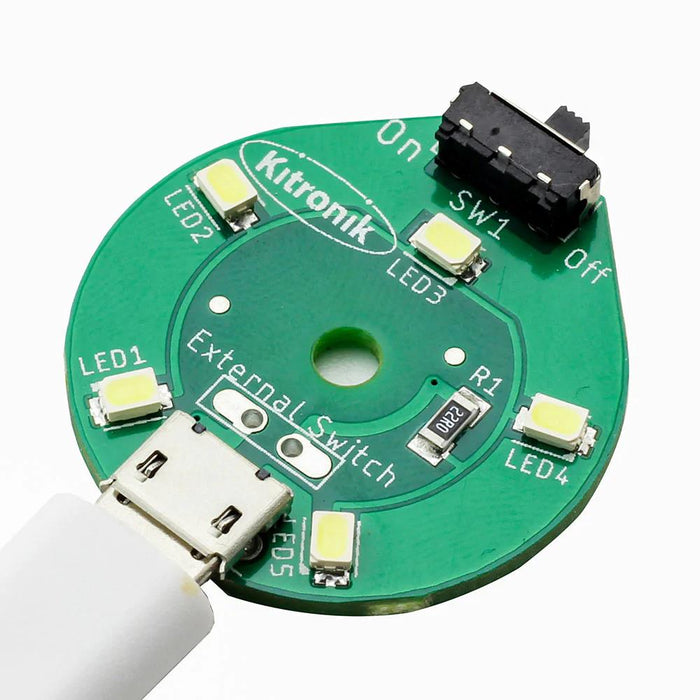

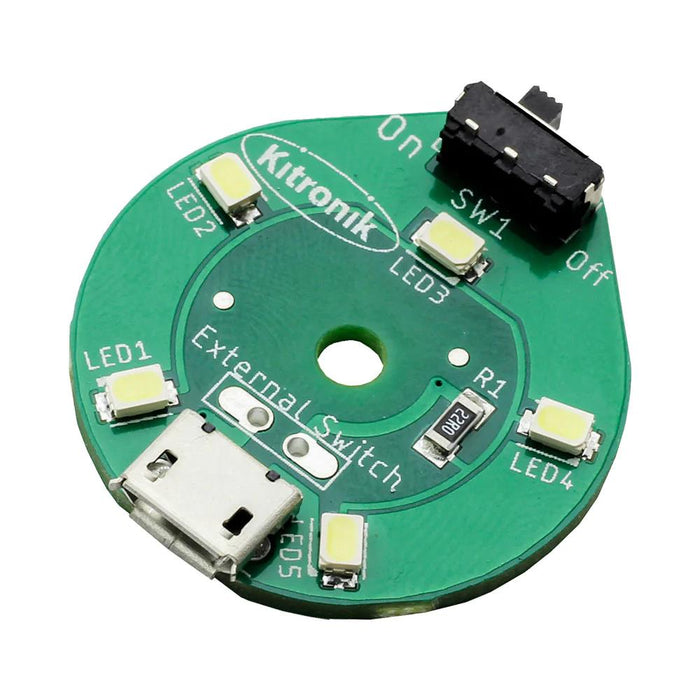

The Round USB White LED Lamp features 5 LEDs and is designed for low power lighting, such as desk lamps or torch lights. Its discreet size and circular layout make it a great choice for creative lighting enclosures.
The board is designed such that it is within the supply rating of a computer USB port (under 100mA). This means you can power it conveniently from a computer/laptop or a suitable 5V power supply.

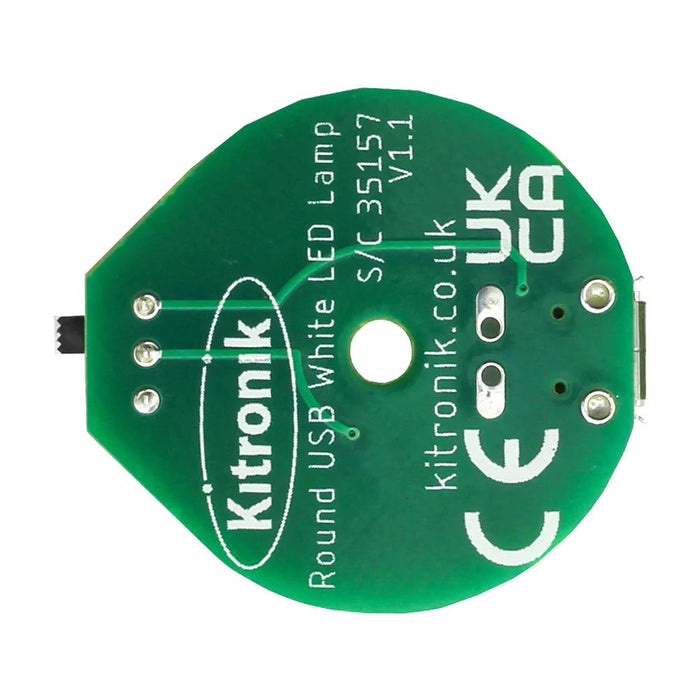

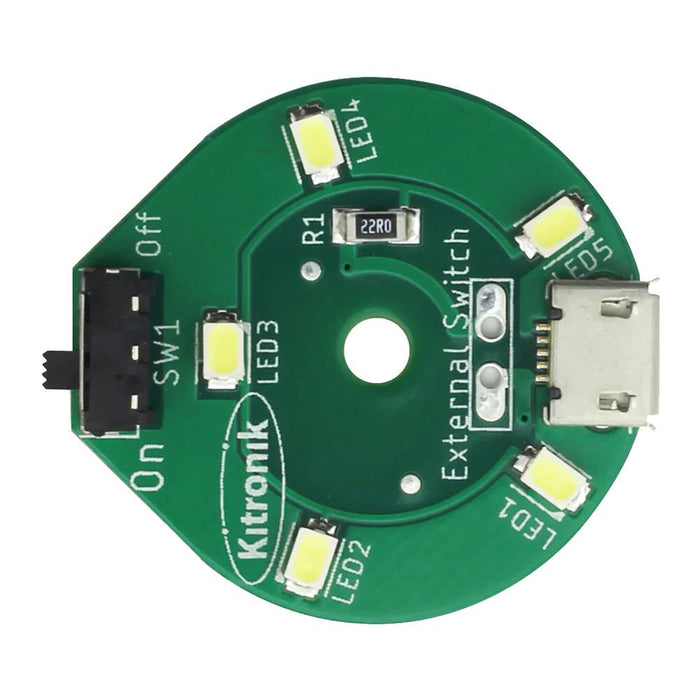

The PCB is designed to fit inside a 28mm square area with the switch positioned prominently so it is easy to access. In the centre of the board is a single M3 mounting hole. The 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole.
The onboard switch can be used to turn on/off the LEDs. An additional switch can be connected in parallel with the PCB switch to allow remote mounting within an enclosure. When using a remote switch the PCB mounted switch should be left switched to ‘Off.

This is a low power (under 100mA) round LED lamp that can be used in enclosure designs.

The 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole.

There is an onboard on/off switch.

It also features pads for connecting an additional optional switch that can be mounted on your enclosure.

If using an additional switch, the onboard switch is disabled by leaving it in the off position.

It features a single M3 (3.3mm) mounting hole at its centre.

It features a micro USB power connector and can be powered by a computer or a suitable 5V power supply.

Dimensions: 28 x 4mm (diameter x height)

Requires USB lead and power supply
