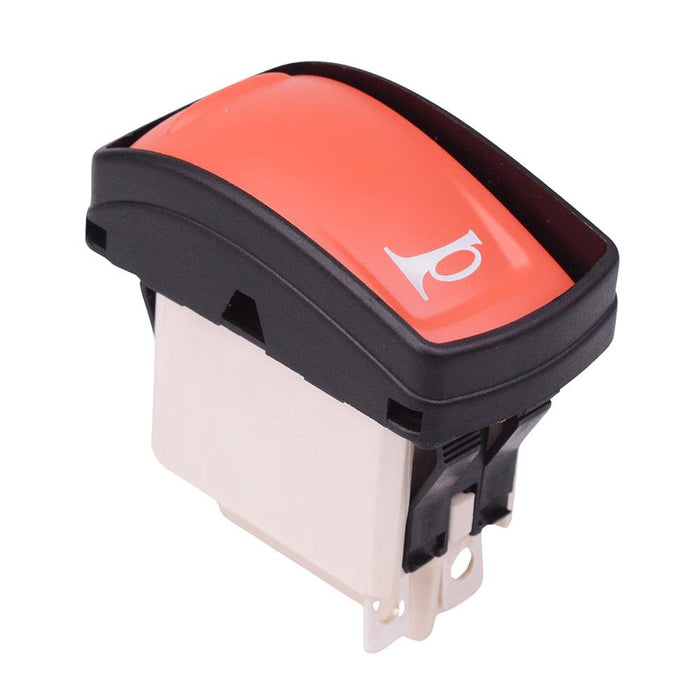

KH135AAZXFG26NXXXX41 On-(On) Momentary 12V Yellow illuminated Rocker Switch SPDT IP69K
by APEM
SKU 490023
MPN: KH135AAZXFG26NXXXX41
Availability:
38 in stock
Original price
£19.18
-
Original price
£19.18
Original price
£19.18
Inc VAT
£19.18
-
£19.18
Current price
£19.18
Inc VAT

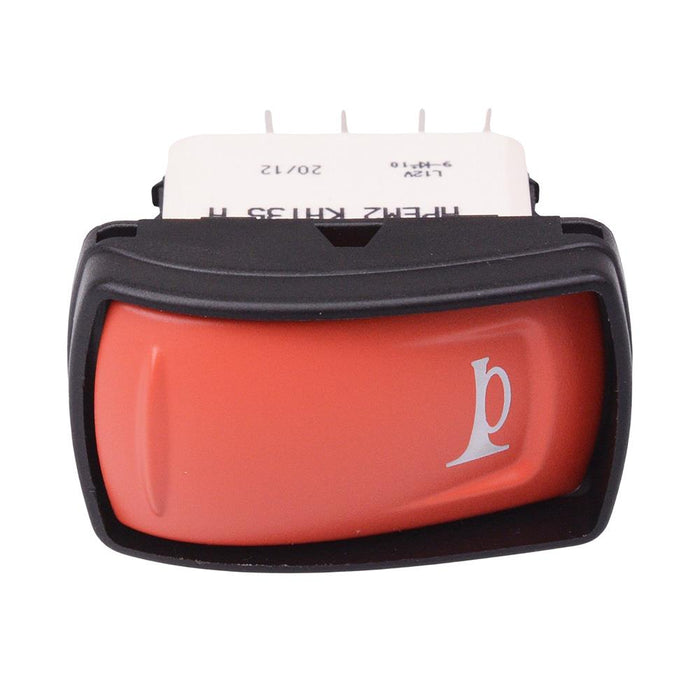

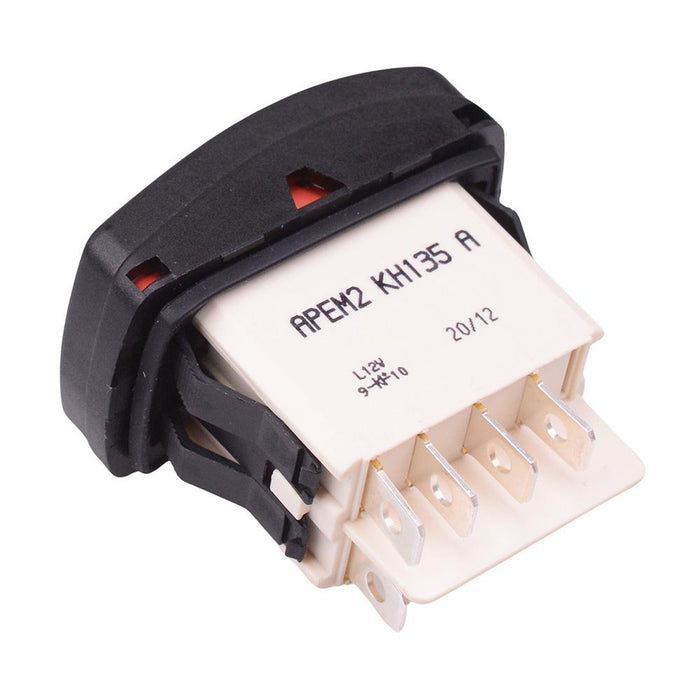

The KH135AAZXFG26NXXXX41 is a momentary power rower switch manufactured by APEM, featuring protection side guards and momentary operation. The switch features yellow 12V illumination with a red actuator with a horn symbol.
On-(On) momentary operation SPDT contacts Yellow 12V illumination Side protection guards Solder/quick connect terminals Rating: 10A 24VDC Protection rating: IP69K Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 12V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP69K |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
