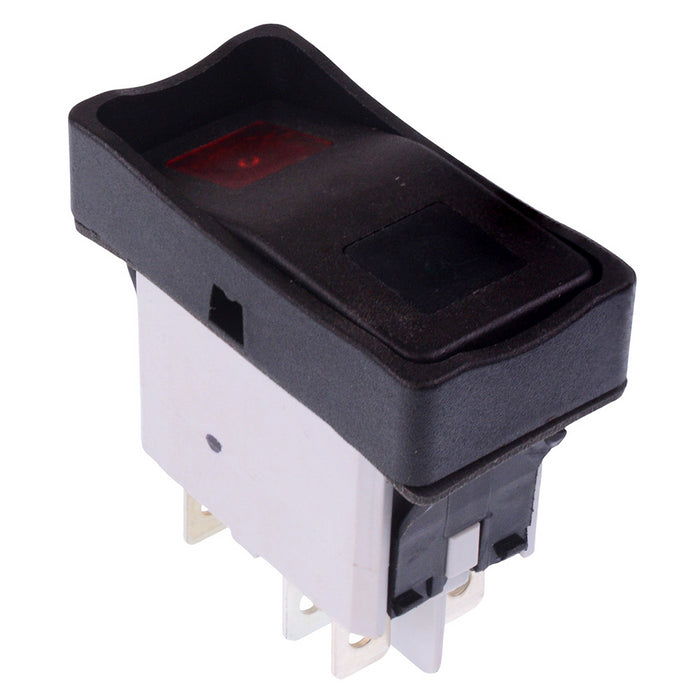

KG462A2KJA2836 APEM On-On Green / Red 24V illuminated Automotive Rocker Switch DPDT IP65

SKU 488029

MPN: KG462A2KJA2836

6 in stock
Original price £18.71 - Original price £18.71
Original price
£18.71 Inc VAT
£18.71 - £18.71
Current price £18.71 Inc VAT
The KG462A2KJA2836 is a 24V power rower switch manufactured by APEM, featuring DPDT contacts and quick connect terminals. The switch is sealed to IP65 and is suitable for industrial and automotive applications.

  • On-On operation
  • DPDT contacts
  • Red and green 24V illumination
  • IP65 protection rating
  • Protection bezel
  • 6.35mm quick connect terminals
  • Rating: 15A 12VDC, 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 15A 12VDC
    Current rating 15A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Green / Red
    Illumination voltage 24VDC
    Material Thermoplastic
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Protection level IP65
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 24VDC
