KG412A2XSA26X3 APEM On-Off Green 220V Power Rocker Switch SPST IP65
by APEM
SKU 490022
MPN: KG412A2XSA26X3
Availability:
14 in stock
Original price
£8.86
-
Original price
£8.86
Original price
£8.86
Inc VAT
£8.86
-
£8.86
Current price
£8.86
Inc VAT

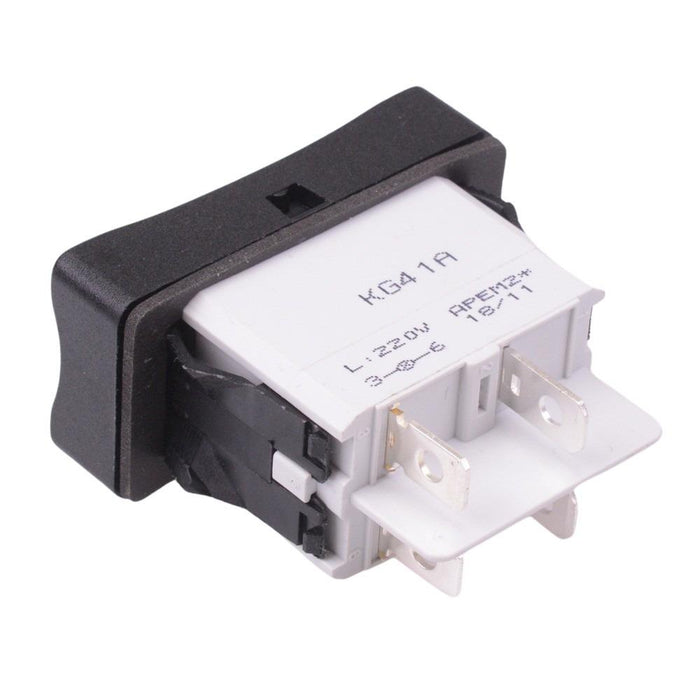

The KG412A2XSA26X3 is a power rower switch manufactured by APEM, featuring DPST contacts and green 220V illumination. The switch is sealed to IP65 and is suitable for industrial applications.
On-Off operation DPST contacts Green 220VAC illumination IP65 protection rating Protection bezel 6.35mm quick connect terminals Rating: 15A 12VDC, 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Contact configuration | DPST |
| Contact material | Silver |
| Contact rating | 15A 12VDC, 10A 24VDC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 220V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP65 |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
