KBPC108 Bridge Rectifier Diode 3A 800V BR38

SKU 552225

MPN: BR38

Availability:
77 in stock
Original price £0.68 - Original price £0.68
Original price
£0.68 Inc VAT
£0.68 - £0.68
Current price £0.68 Inc VAT

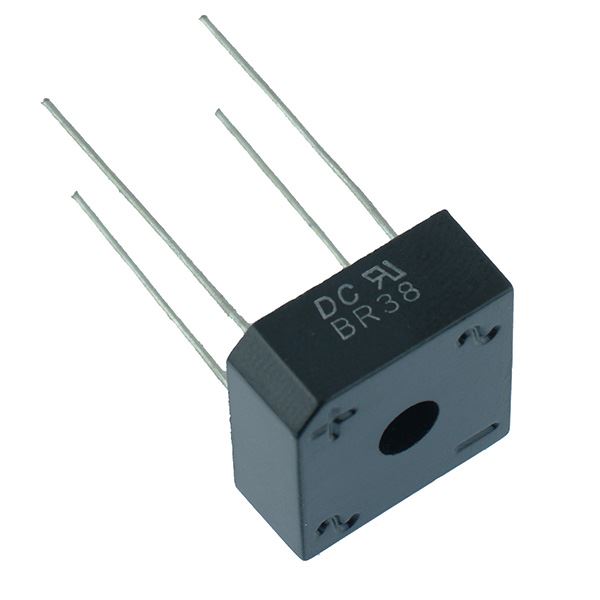

KBPC108 miniature bridge rectifier diode featuring 3A average forward current and 800V repetitive peak reverse voltage, housed in a flame retardant UL 94V-0 BR-3 package suitable for mounting to printed circuit boards.

  • 50A surge overload rating
  • Low forward voltage drop
  • Small size with simple installation
  • Moulded plastic package
  • Dimensions: 15.2mm x 15.2mm x 6.3mm (Width x Length x Height)
  • Pitch: 10.8mm x 10.8mm
  • Specification
    Average rectified current 3A
    Back order lead time 5 Days
    Body dimensions 15.2mm x 15.2mm x 6.3mm (Width x Length x Height)
    Maximum dc blocking voltage 800V
    Maximum forward voltage 1.0V
    Maximum rms voltage 560V
    Mounting style Through Hole
    Operating temperature -55°C to 125°C
    Package BR-3
    Packaging Bulk
    Peak reverse voltage 800V
    Peak surge current 50A
