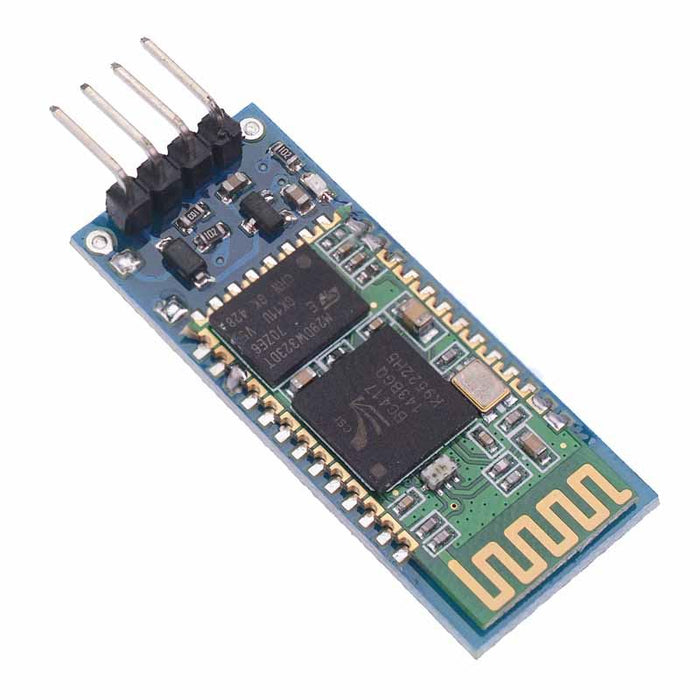

JY-MCU HC-06 Wireless Bluetooth RF Serial 5V Transceiver Module

The JY-MCU HC-06 module allows the user to easily connect an Arduino to a computer, mobile phone and other personal device via the bluetooth serial communication. This allows the ability to trasnfer data 2 ways making it suitable for a wide range of applications including transferring sensor data back to your device and controlling an Arduino from an Android phone.

USB protocol: USB v1.1/2.0

Frequency: 2.4GHz ISM band

Modulation: GFSK

Transmit power: =4dBm, Class 2

Sensitivity: =-84dBm at 0.1% BER

Rate: Asynchronous: 2.1Mbps(Max) /160 kbps

Synchronous: 1Mbps/1Mbps

Support profiles: Bluetooth serial port

Power Supply: 3.3VDC 50mA
