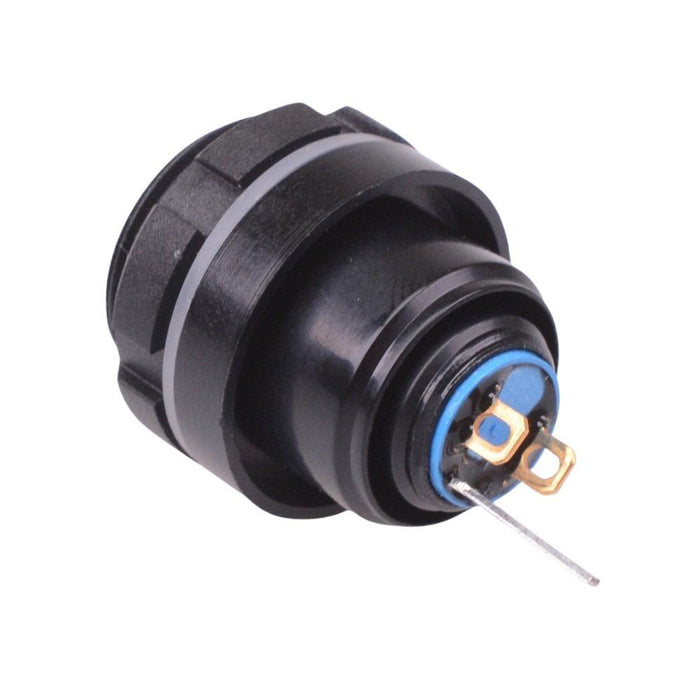

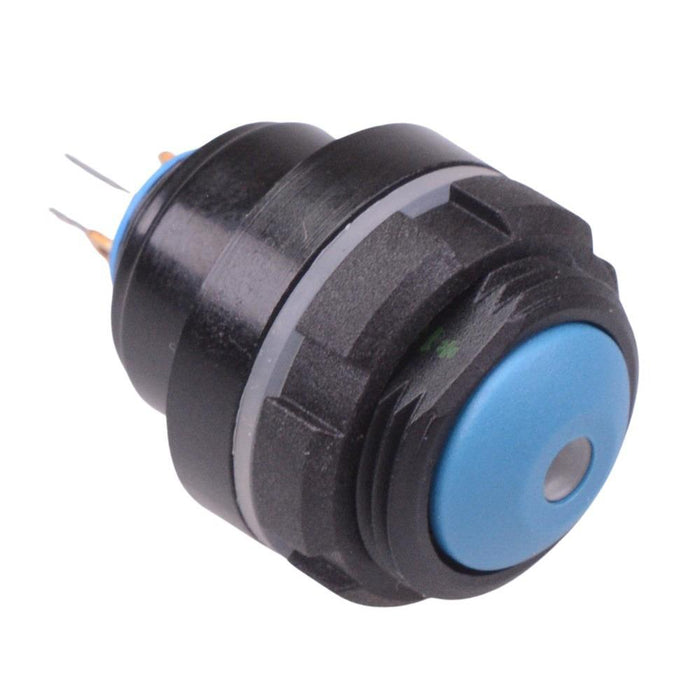

IZPR1S412L0S APEM Red LED Blue 16mm Round Latching Push Button Switch IP67
by APEM
SKU 490020
MPN: IZPR1S412L0S
Availability:
219 in stock
Original price
£18.38
-
Original price
£18.38
Original price
£18.38
£18.38
£18.38
-
£18.38
Current price
£18.38
The IZPR1S412L0S is an illuminated rear mounting round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. This makes the switch ideal for applications including automotive and marine.
- Button colour: blue
- LED colour: red
- LED forward voltage: 1.95V
- LED forward current: 20mA
- Panel cut-out: 16.2mm
- Contacts: latching SPST
- Gold plated silver contacts
- Solder lug terminals
- Contact rating: 100mA 24VDC
- Protection rating: IP67
- Maximum panel thickness: 3mm
- Dimensions: 20 x 27.9mm (diameter x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 100mA 24VDC |
| Current Rating | 0.1A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 1.95V |
| Material | Polyamide |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 3mm |
| Product Series | IZ |
| Protection Level | IP67 |
| Switch Operation | Off-On |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
