ISR3Z1AD200 APEM Black Momentary 12mm Push Button SPST IP67
by APEM
SKU 488254
MPN: ISR3Z1AD200
Availability:
487 in stock
Original price
£5.87
-
Original price
£5.87
Original price
£5.87
£5.87
-
£5.87
Current price
£5.87

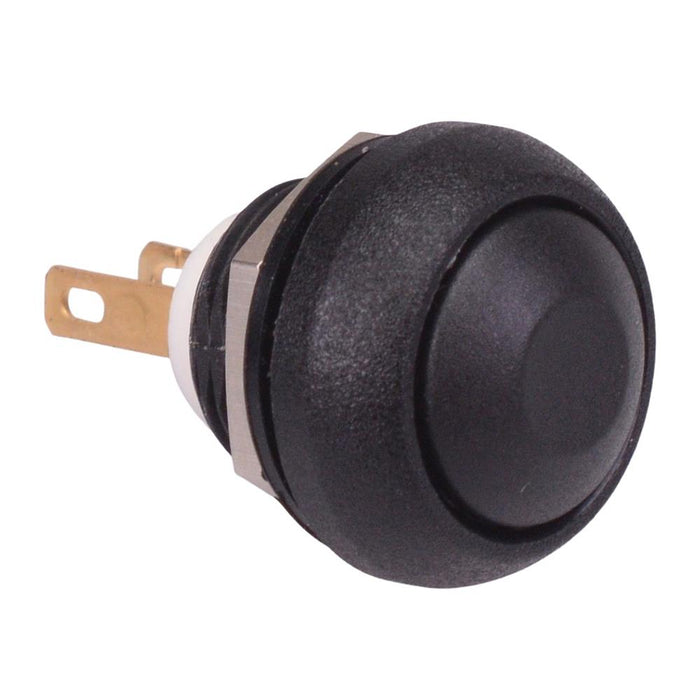

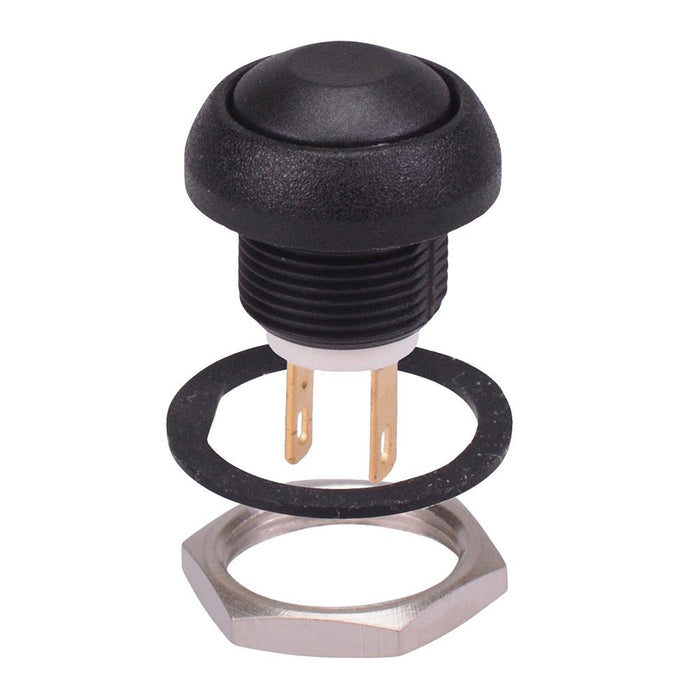

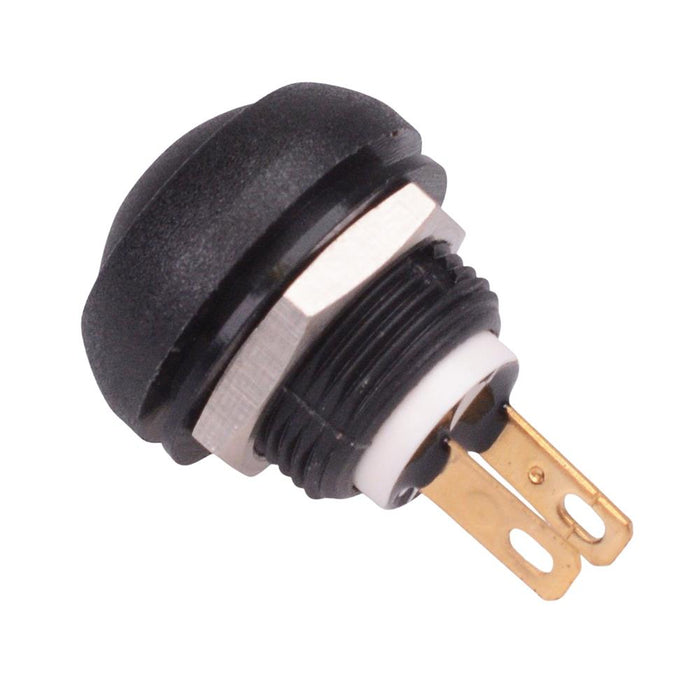

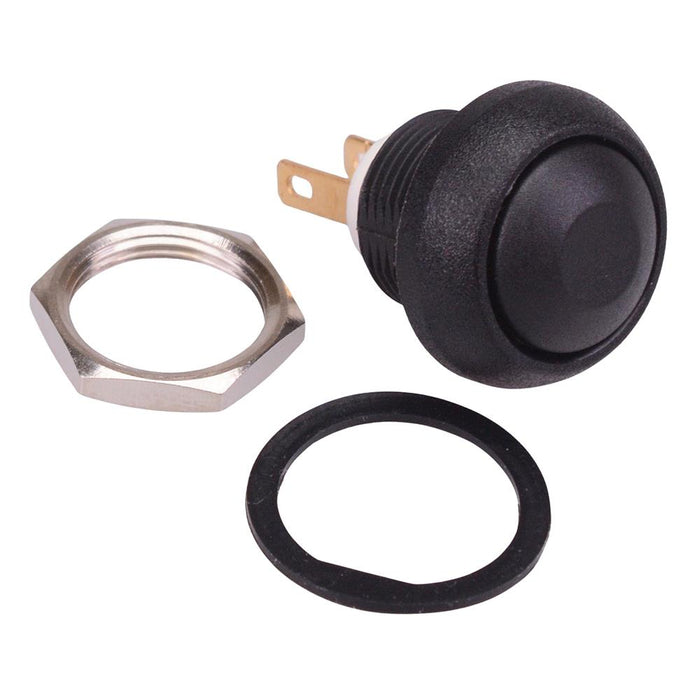

The ISR3Z1AD200 is a black momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 2.8mm quick connect terminals and SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm 2.8mm x 0.5mm quick connect terminals Rating: 400mA 32VAC - 100mA 48VDC Panel thickness: 1.5-4mm Dimensions: 20 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 0.4A 32VAC, 0.1A 48VDC |
| Current Rating | 0.4A @ 32VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IS |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 32VAC / 48VDC |
