ISR3SADB00 Blue Momentary 12mm Push Button Switch SPST IP67 APEM
by APEM
SKU 486006
MPN: ISR3SADB00
Availability:
41 in stock
Original price
£6.03
-
Original price
£6.03
Original price
£6.03
£9.98
£9.98
-
£9.98
Current price
£9.98

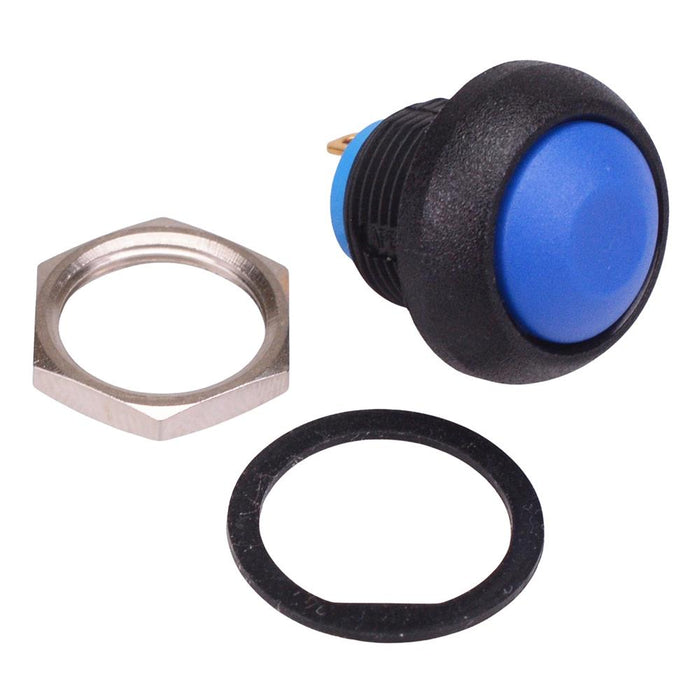

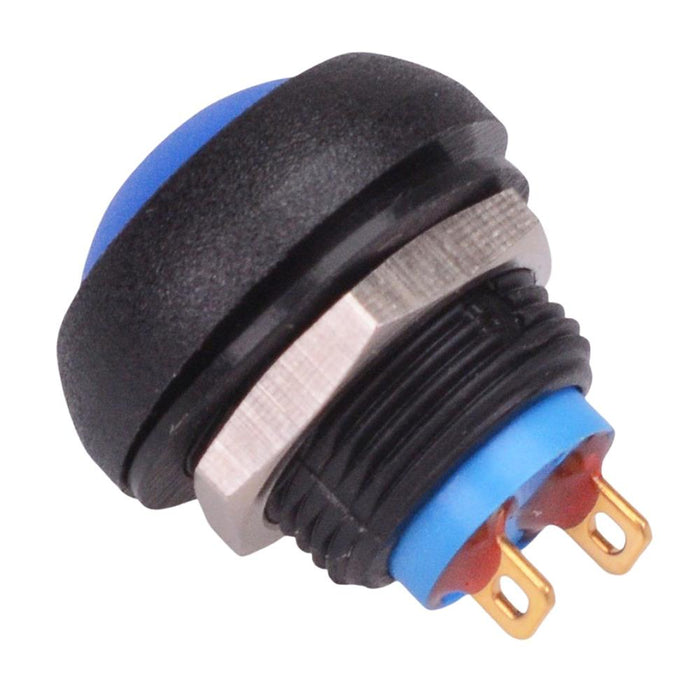

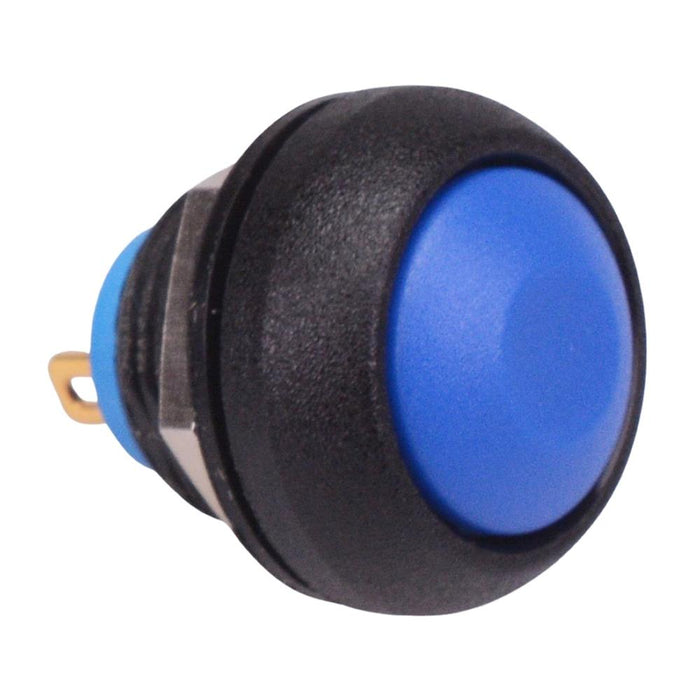

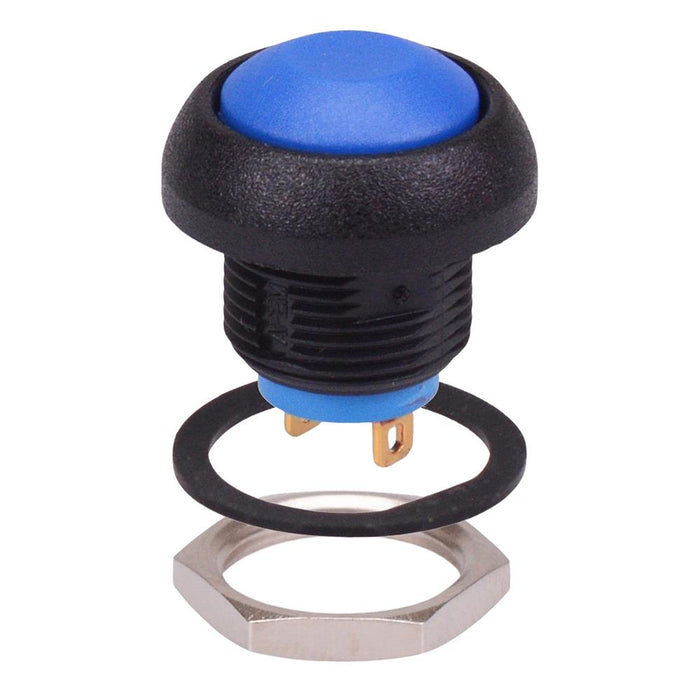

The ISR3SADB00 is a blue momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 400mA 32VAC - 100mA 48VDC Panel thickness: 1.5-4mm Dimensions: 20 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 0.4A 32VAC, 0.1A 48VDC |
| Current Rating | 0.4A @ 32VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IS |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 32VAC / 48VDC |
