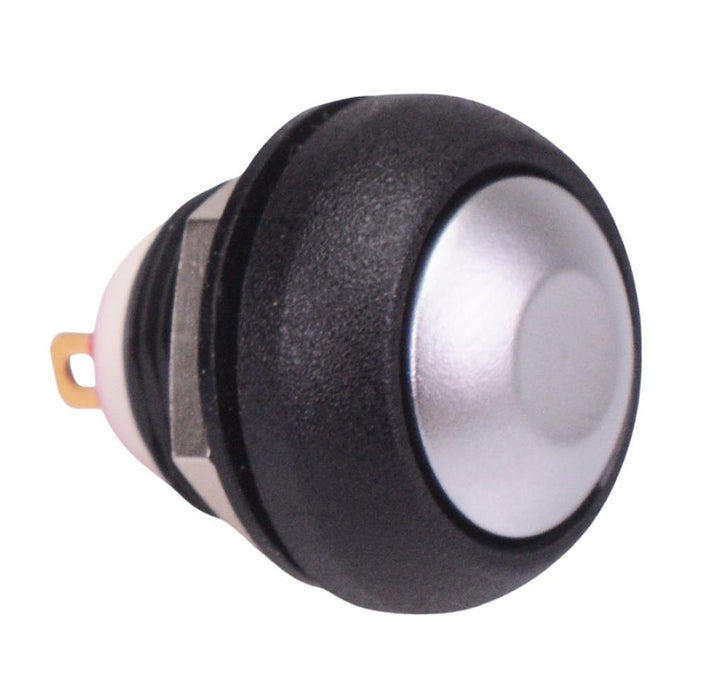

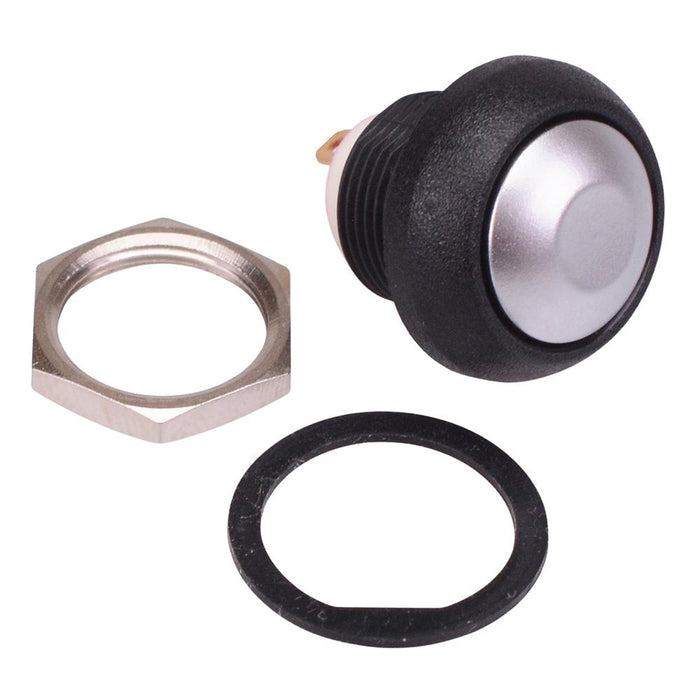

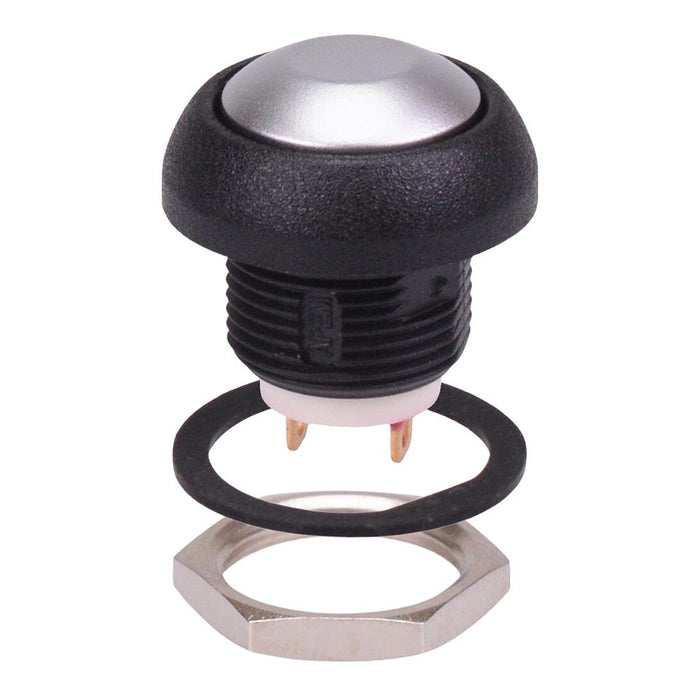

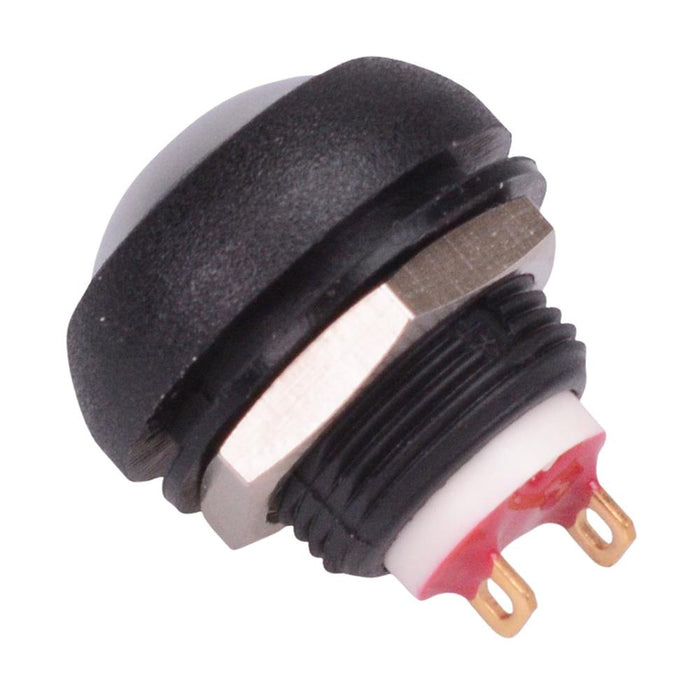

ISR3SADA00 APEM Chrome Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 486005
MPN: ISR3SADA00
Availability:
15 in stock
Original price
£13.08
-
Original price
£13.08
Original price
£13.08
Inc VAT
£13.08
-
£13.08
Current price
£13.08
Inc VAT
The ISR3SADA00 is a chrome momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 400mA 32VAC - 100mA 48VDC Panel thickness: 1.5-4mm Dimensions: 20 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Chrome |
| Contact configuration | SPST |
| Contact rating | 0.4A 32VAC, 0.1A 48VDC |
| Current rating | 0.4A @ 32VAC |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 4N |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IS |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 32VAC / 48VDC |
