ISR3SAD300160 APEM Green Momentary 12mm Push Button SPST IP67

by APEM
SKU 486000

MPN: ISR3SAD300160

Availability:
10 in stock
Original price £6.65 - Original price £6.65
Original price
£6.65 Inc VAT
£6.65 - £6.65
Current price £6.65 Inc VAT

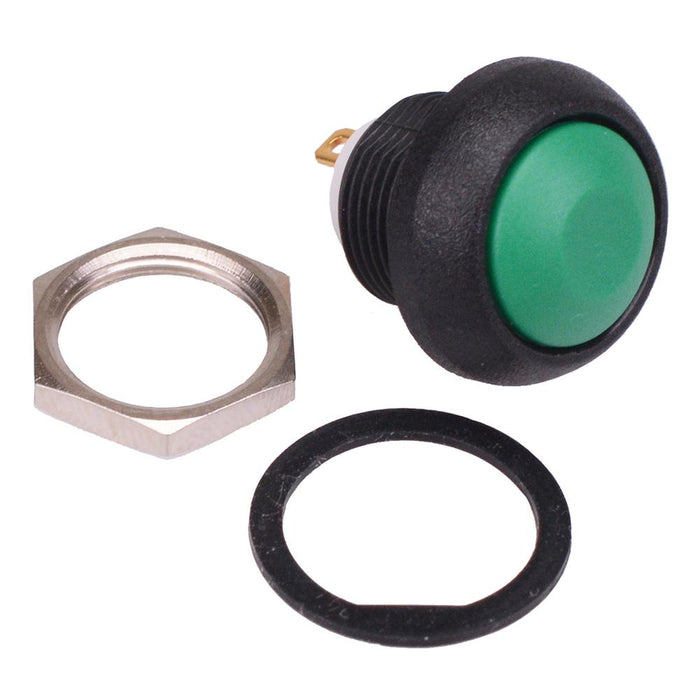

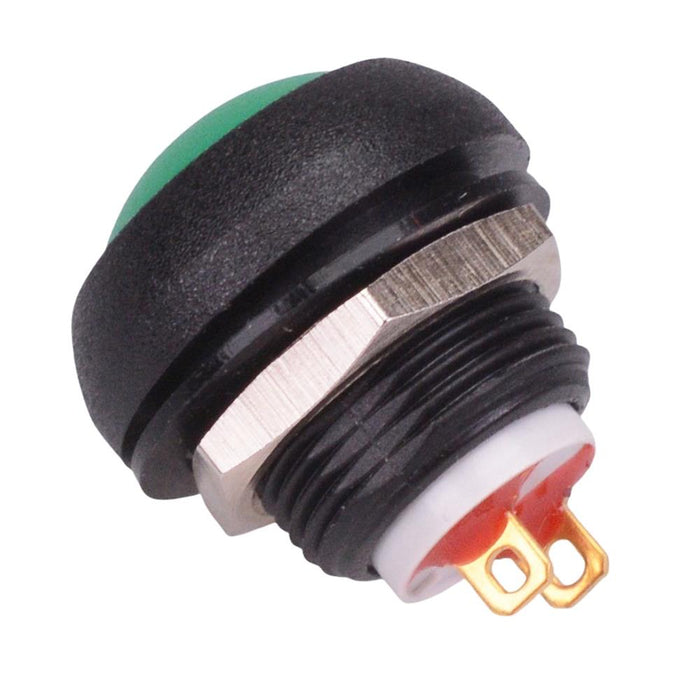

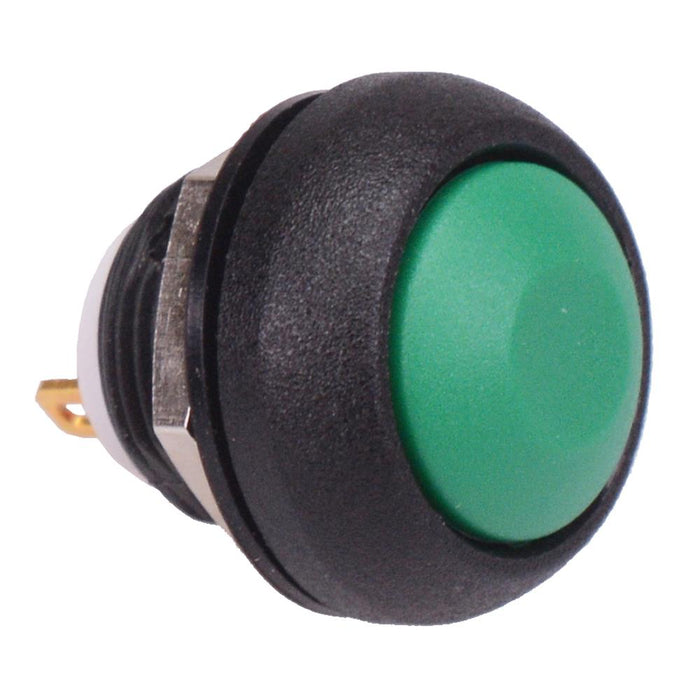

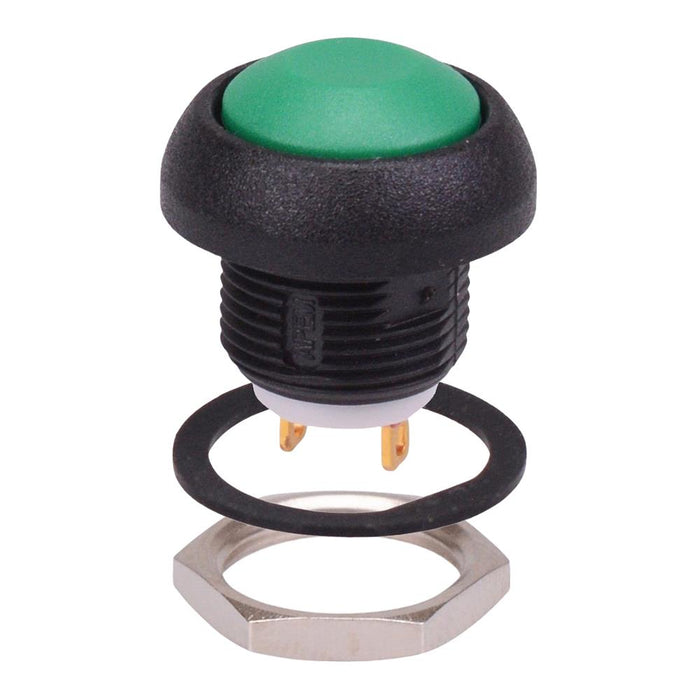

The ISR3SAD300160 is a green momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 1.5-4mm
  • Dimensions: 20 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration SPST
    Contact rating 0.4A 32VAC, 0.1A 48VDC
    Current rating 0.4A @ 32VAC
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 4N
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-4mm
    Product series IS
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 32VAC / 48VDC
