ISR3SAD200 APEM Black Momentary 12mm Push Button SPST IP67

by APEM
SKU 488276

MPN: ISR3SAD200

Availability:
50 in stock
Original price £12.51 - Original price £12.51
Original price
£12.51
£12.51 - £12.51
Current price £12.51

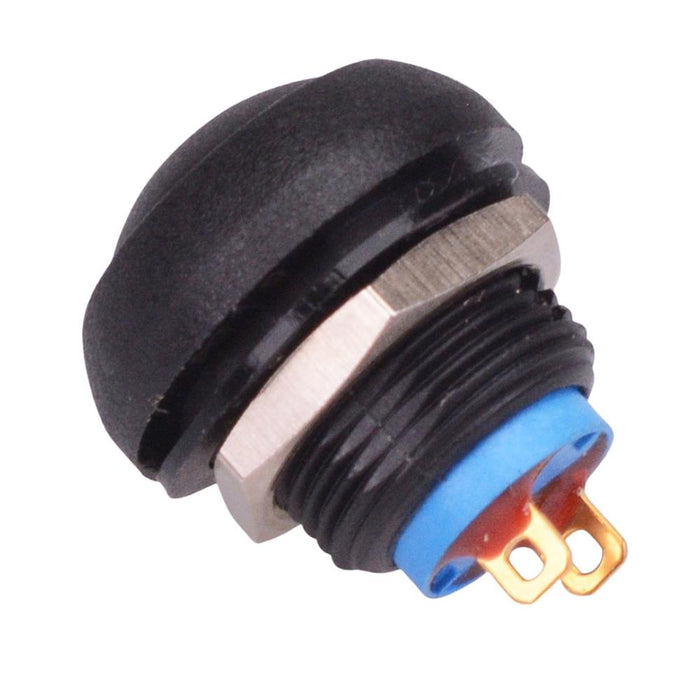

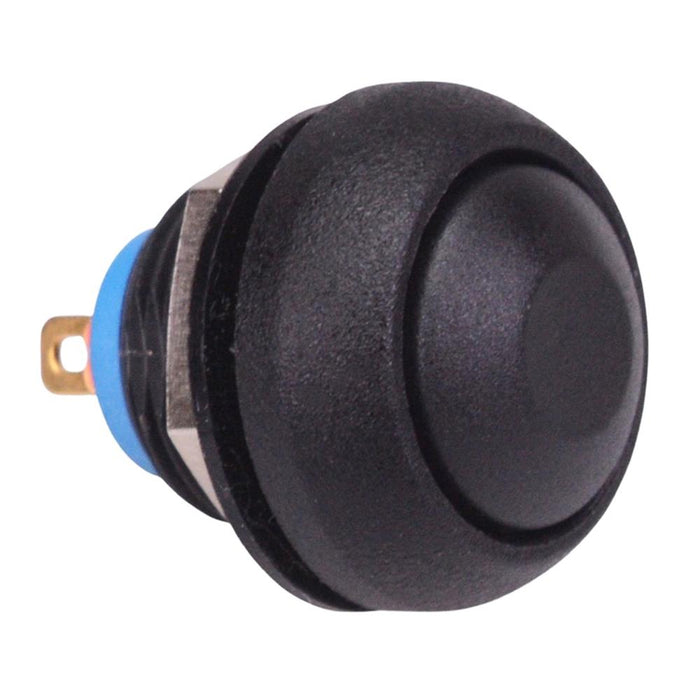

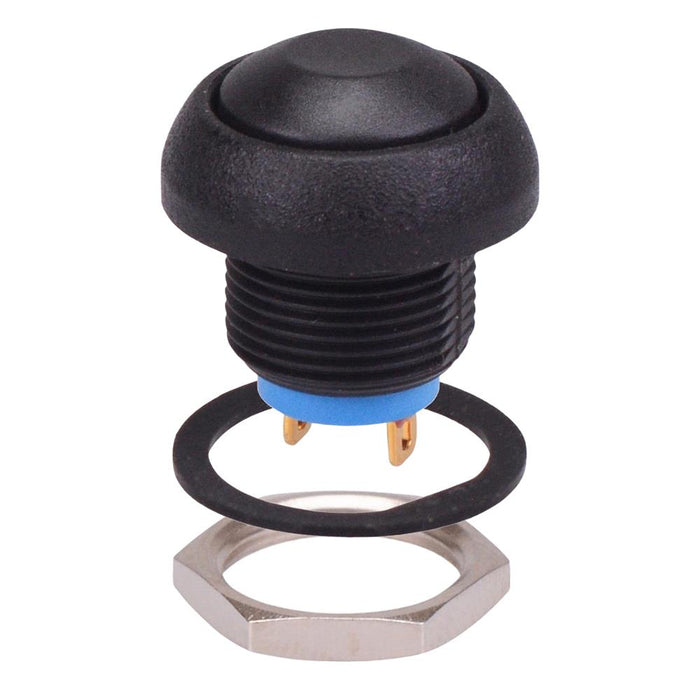

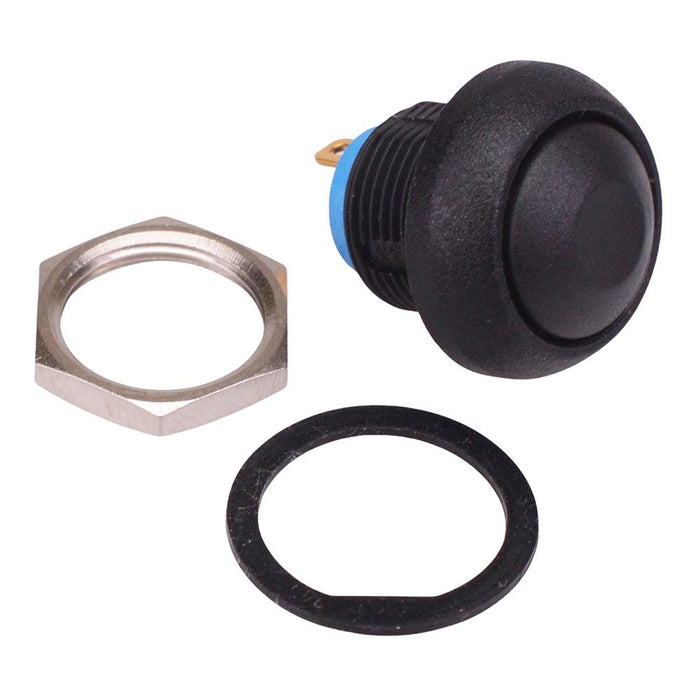

The ISR3SAD200 is a black momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 1.5-4mm
  • Dimensions: 20 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Black
    Contact Configuration SPST
    Contact Rating 0.4A 32VAC, 0.1A 48VDC
    Current Rating 0.4A @ 32VAC
    Illuminated No
    Illumination Colour Non Illuminated
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 4N
    Operating Temperature -40°C to +85°C
    Panel Cut Out 13.6mm
    Panel Thickness 1.5-4mm
    Product Series IS
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 32VAC / 48VDC
