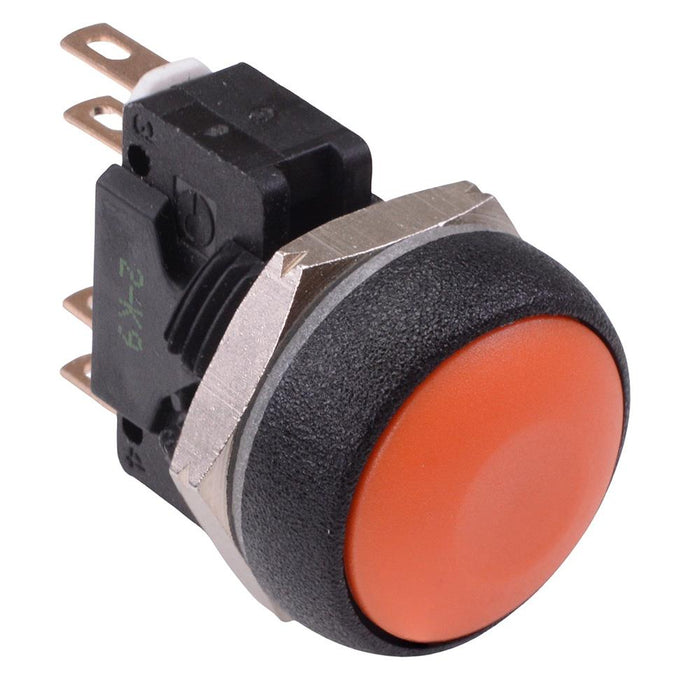

IRR8Z292 APEM Orange Round 16mm Momentary Push Button Switch DPDT 5A IP67
by APEM
SKU 487434
MPN: IRR8Z292
Availability:
74 in stock
Original price
£8.16
-
Original price
£8.16
Original price
£8.16
Inc VAT
£8.16
-
£8.16
Current price
£8.16
Inc VAT
The IRR8Z292 is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch and maximum current/voltage rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: orange Panel cut-out: 16.2mm Contacts: DPDT Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 31.65mm (diameter x height)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Orange |
| Contact configuration | DPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 500,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 16.2mm |
| Panel thickness | 3mm |
| Product series | IR |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
