IRR7Z252L0Y APEM Yellow LED Yellow Button Round 16mm Momentary Push Button Switch SPDT 5A IP67

by APEM
SKU 487320

MPN: IRR7Z252L0Y

Availability:
89 in stock
Original price £11.64 - Original price £11.64
Original price
£11.64 Inc VAT
£11.64 - £11.64
Current price £11.64 Inc VAT

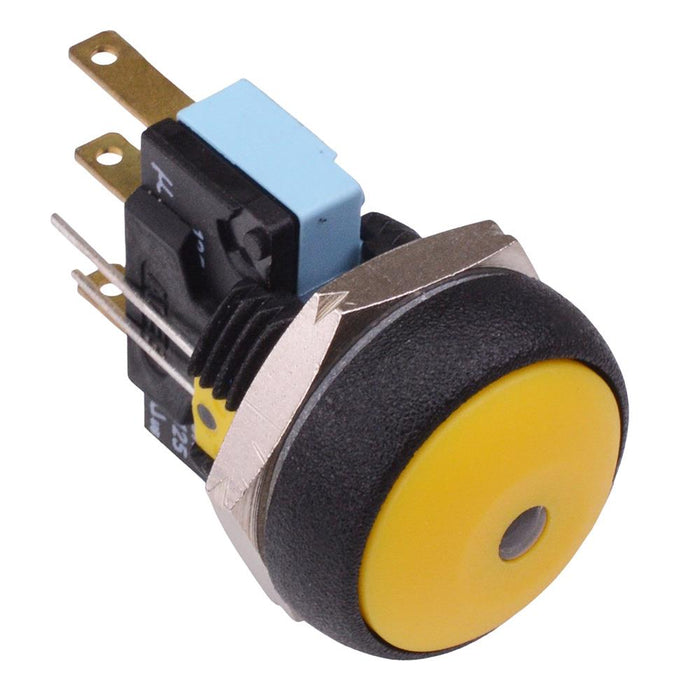

The IRR7Z252L0Y is a round sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: yellow
  • LED colour: yellow
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO + NC
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 33.6mm (diameter x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Yellow
    Contact configuration SPDT
    Contact material Gold Plated Silver
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 500,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 2.1VDC
    Material Polyamide
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 16.2mm
    Panel thickness 3mm
    Product series IR
    Protection level IP67
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
