IRR3S462 Red Momentary 16mm Push Button Switch SPST IP67 APEM
by APEM
SKU 486012
MPN: IRR3S462
Availability:
10 in stock
Original price
£14.41
-
Original price
£14.41
Original price
£14.41
£20.94
£20.94
-
£20.94
Current price
£20.94

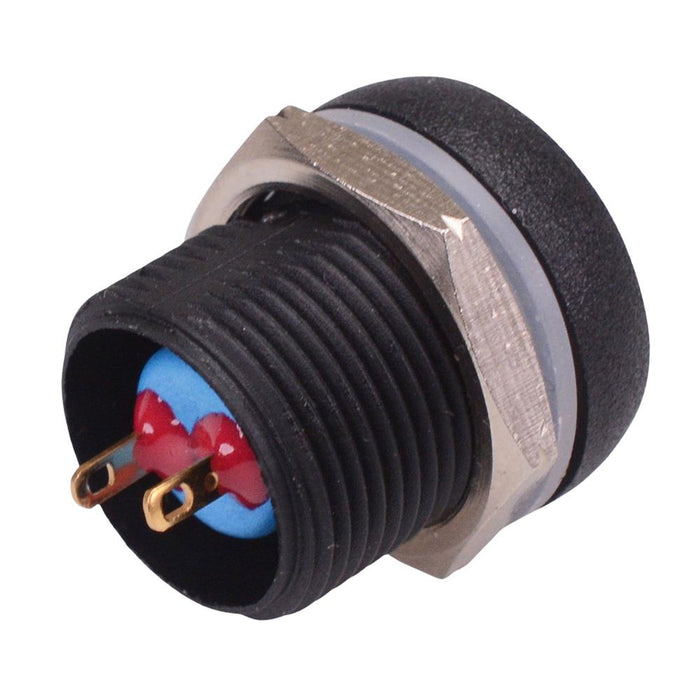

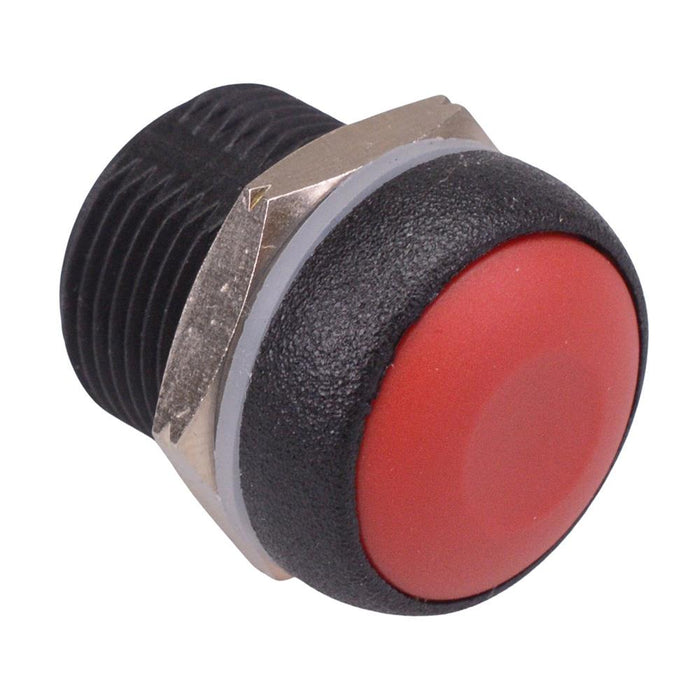

The IRR3S462 is a red momentary push button switch with a 16mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.
Momentary operation Tactile feedback SPST contacts 16mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 200mA 48VDC, 5A 28VDC Panel thickness: 8mm max Dimensions: 25.4 x 19.8mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 5A 28VDC, 0.2A 48VDC |
| Current Rating | 5A @ 28VDC |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 2-5N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 14.8mm |
| Panel Thickness | 8mm Max |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
