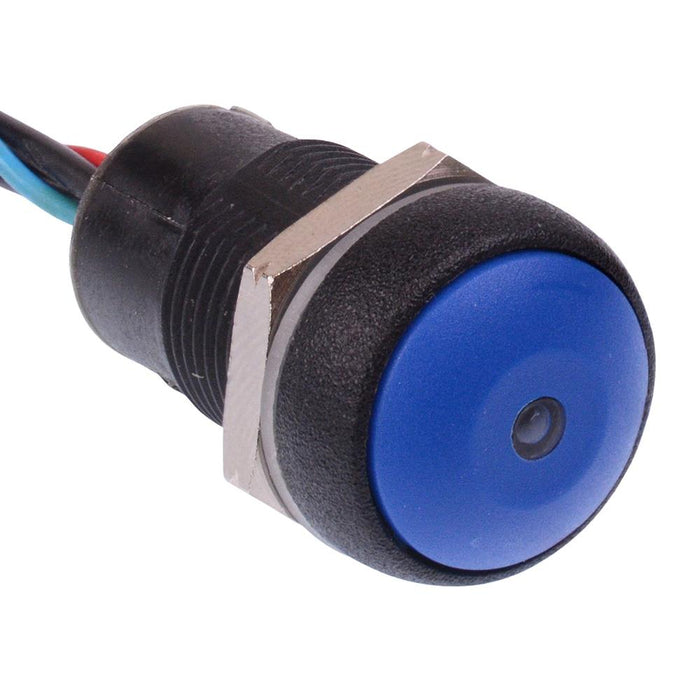

IRR3F4B2L0B APEM Blue LED Blue Button Round 16mm Momentary Push Button Switch Prewired IP67

by APEM
SKU 487567

MPN: IRR3F4B2L0B

Availability:
Out of stock
Sold out
Original price £10.51 - Original price £10.51
Original price
£10.51
£10.51 - £10.51
Current price £10.51
The IRR3F4B2L0B is a round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

  • Button colour: dark blue
  • LED colour: blue
  • LED forward voltage: 3.2V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals: 500mm flying leads
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 30.0mm (diameter x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Blue
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 0.2A 48VDC
    Current Rating 0.2A
    Electrical Life 500,000 Cycles
    Illuminated Yes
    Illumination Colour Blue
    Illumination Voltage 3.2VDC
    Material Polyamide
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 8mm
    Product Series IR
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 48VDC
