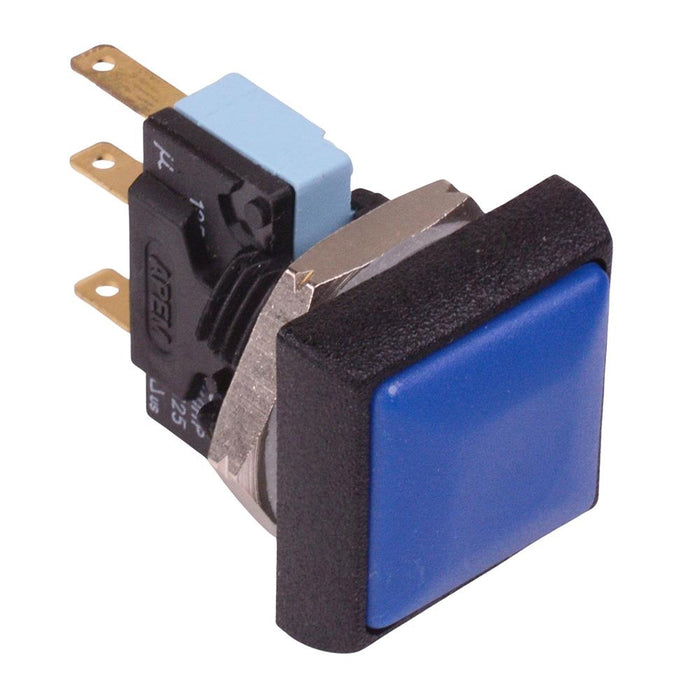

IRC7Z2B2 APEM Dark Blue Square 16mm Momentary Push Button Switch SPDT 5A IP67
by APEM
SKU 487572
MPN: IRC7Z2B2
Availability:
50 in stock
Original price
£7.41
-
Original price
£7.41
Original price
£7.41
Inc VAT
£7.41
-
£7.41
Current price
£7.41
Inc VAT
The IRC7Z2B2 is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: dark blue Panel cut-out: 16.2mm Contacts: momentary NO + NC Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Dark Blue |
| Contact configuration | SPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 500,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 16.2mm |
| Panel thickness | 3mm |
| Product series | IR |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
