IRC3S492 APEM Orange Square 16mm Momentary NO Push Button Switch IP67

by APEM
SKU 487717

MPN: IRC3S492

Availability:
46 in stock
Original price £6.53 - Original price £6.53
Original price
£6.53 Inc VAT
£6.53 - £6.53
Current price £6.53 Inc VAT

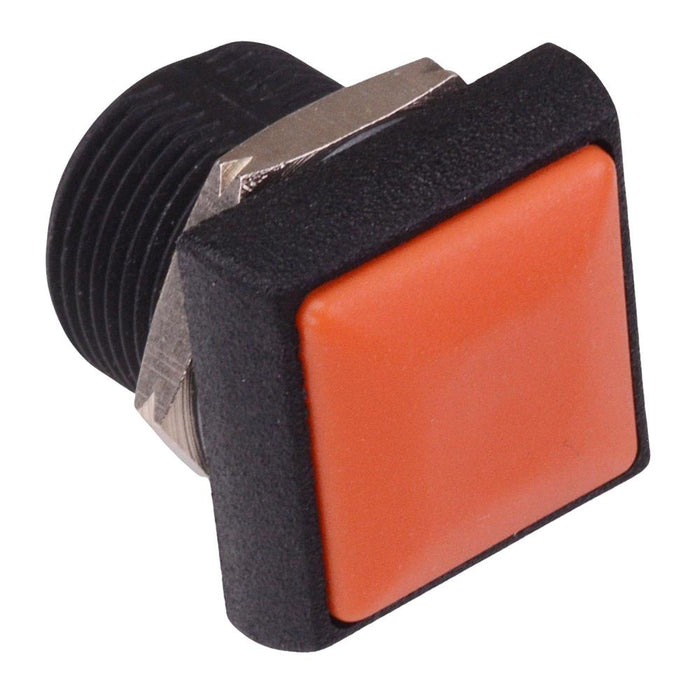

The IRC3S492 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

  • Button colour: orange
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals:solder lug contacts
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Orange
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 0.2A 48VDC
    Current rating 0.2A
    Electrical life 500,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Polyamide
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 16.2mm
    Panel thickness 8mm
    Product series IR
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 48VDC
