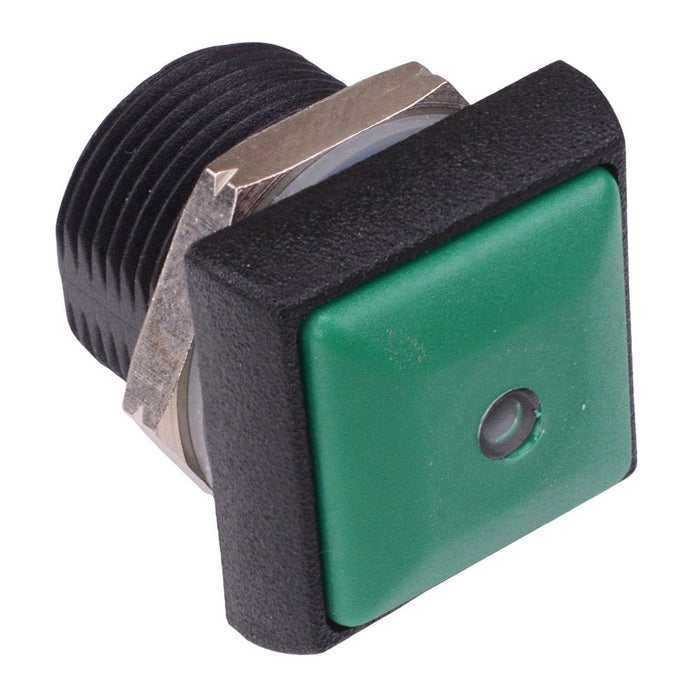

IRC3S432L0G APEM Green LED Green Button Square 16mm Momentary NO Push Button Switch IP67

by APEM
SKU 487390

MPN: IRC3S432L0G

Availability:
100 in stock
Original price £7.43 - Original price £7.43
Original price
£7.43 Inc VAT
£7.43 - £7.43
Current price £7.43 Inc VAT
The IRC3S432L0G is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

  • Button colour: green
  • LED colour: green
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals: solder lug
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 0.2A 48VDC
    Current rating 0.2A
    Electrical life 500,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 2.1VDC
    Material Polyamide
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 16.2mm
    Panel thickness 8mm
    Product series IR
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 48VDC
