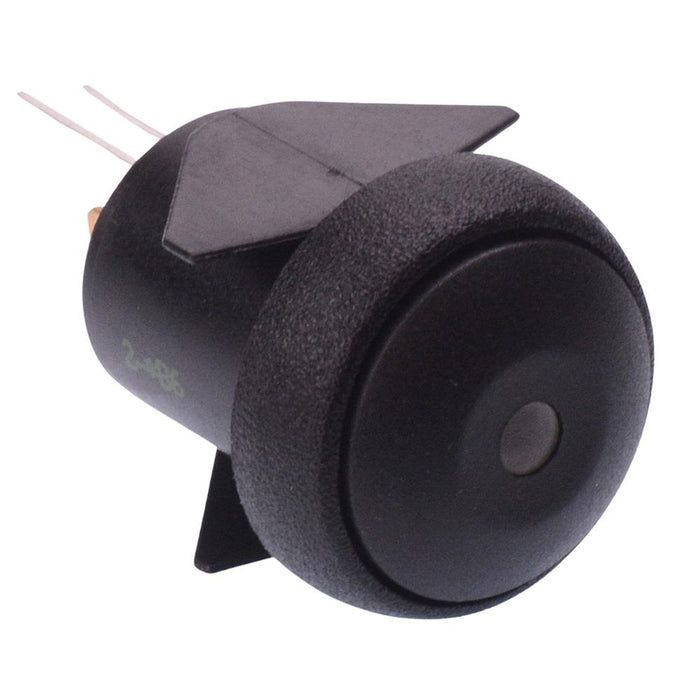

IQR1S422L0Y APEM Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST

by APEM
SKU 487695

MPN: IQR1S422L0Y

Availability:
Out of stock
Sold out
Original price £14.64 - Original price £14.64
Original price
£14.64 Inc VAT
£14.64 - £14.64
Current price £14.64 Inc VAT
The IQR1S422L0Y is a black latching round push button switch with a snap-in bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications including automotive.

  • Latching operation
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • Snap-in mounting
  • IP54 protection level
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC
  • Panel thickness: 2.2mm max
  • Dimensions: 27.7 x 19.8mm (height x diameter)
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 4A 12VDC, 3A 48VDC, 1A 72VDC
    Current rating 4A @ 12VDC
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 2.1VDC
    Material Zinc Diecast
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-5.5mm
    Product series IP
    Protection level IP67
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 72VDC
