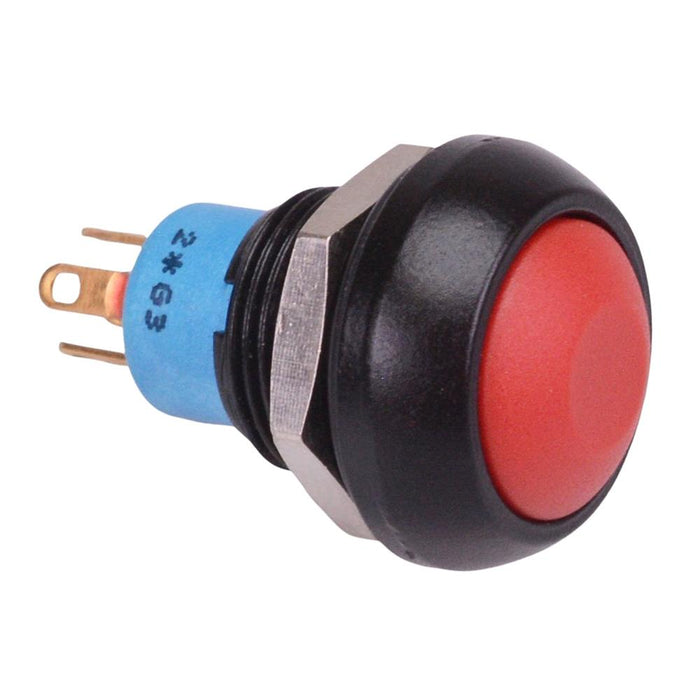

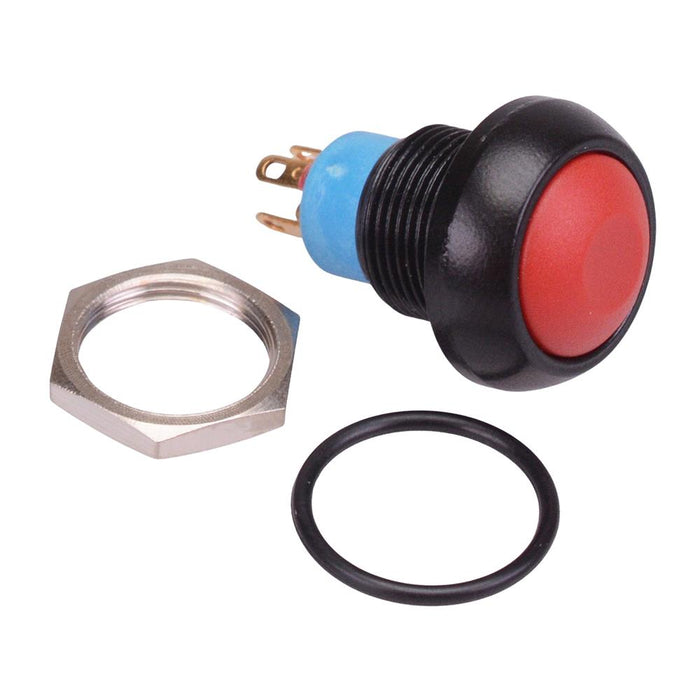

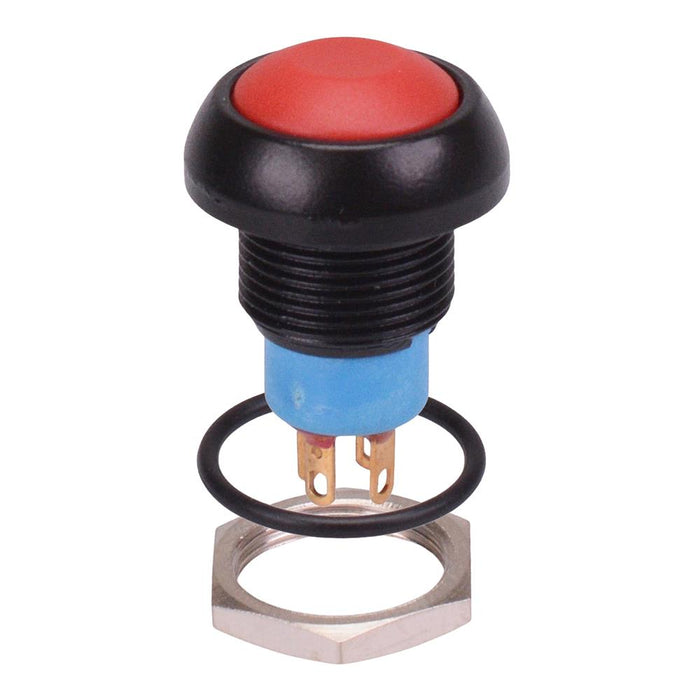

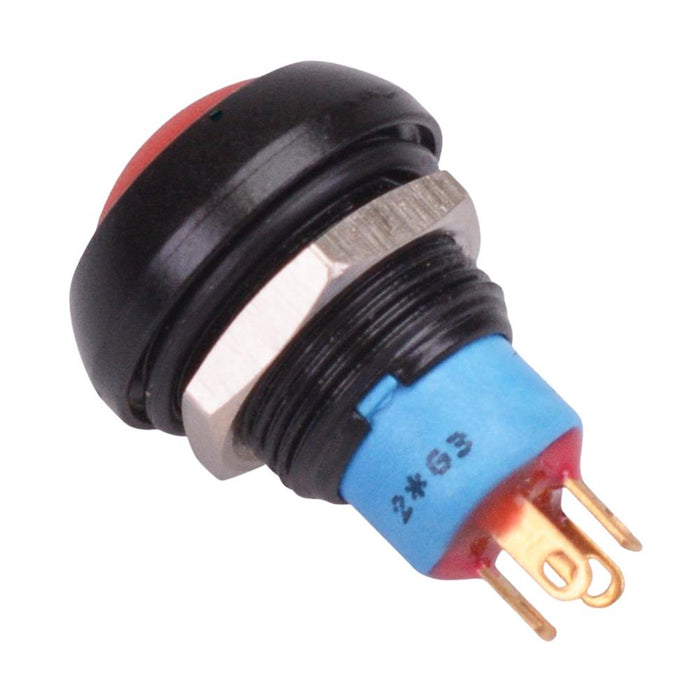

IPR5SAD6 APEM Red Momentary 12mm Push Button Switch SPDT IP67
by APEM
SKU 485999
MPN: IPR5SAD6
Availability:
13 in stock
Original price
£12.34
-
Original price
£12.34
Original price
£12.34
Inc VAT
£12.34
-
£12.34
Current price
£12.34
Inc VAT
The IPR5SAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPDT contacts, suitable for applications in harsh environments.
Momentary operation SPDT contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Back of panel space requirement: 17.5mm minimum Dimensions: 23.4 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPDT |
| Contact rating | 0.5A 28VDC, 0.2A 48VDC |
| Current rating | 0.5A @ 28VDC |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 4N |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IP |
| Protection level | IP67 |
| Terminal type | Solder |
| Voltage rating | 48VDC |
