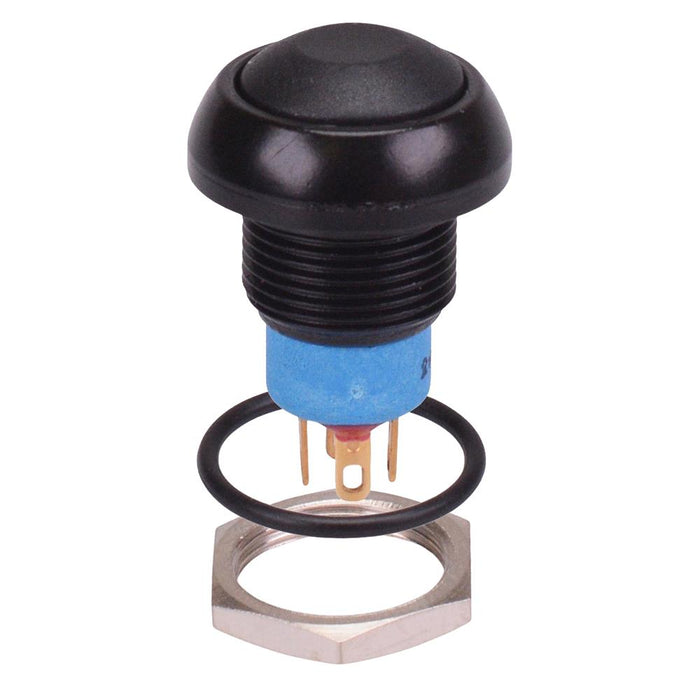

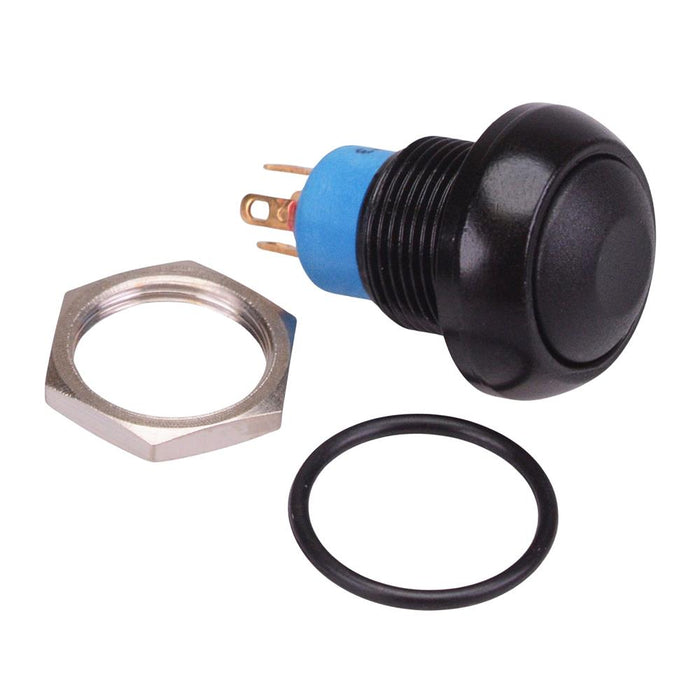

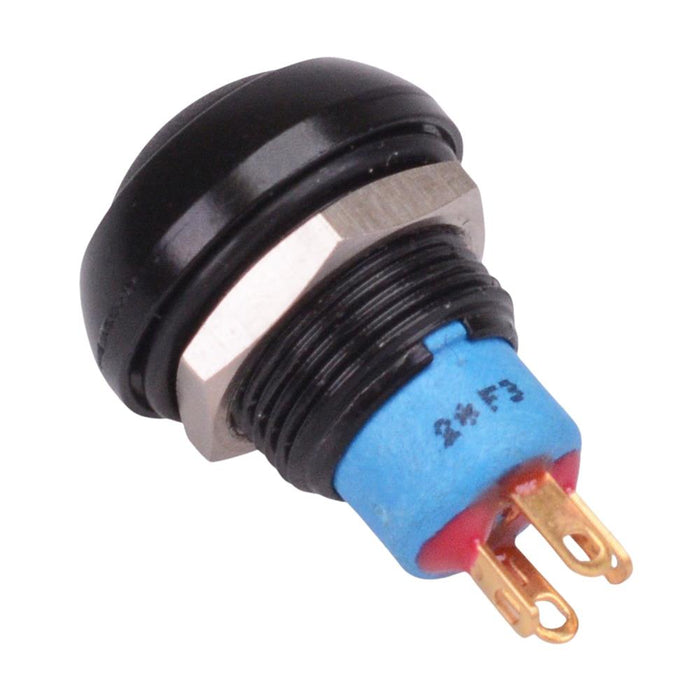

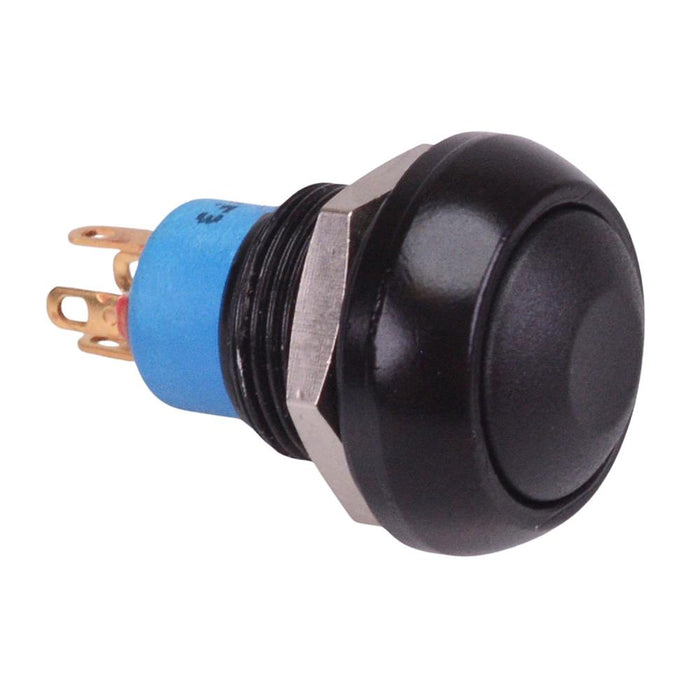

IPR5SAD2 APEM Black Momentary 12mm Push Button Switch SPDT IP67

SKU 485997


50 in stock
Original price £12.46 - Original price £12.46
Original price
£12.46 Inc VAT
£12.46 - £12.46
Current price £12.46 Inc VAT
The IPR5SAD2 is a black momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPDT contacts, suitable for applications in harsh environments.

  • Momentary operation
  • SPDT contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Back of panel space requirement: 17.5mm minimum
  • Dimensions: 23.4 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPDT
    Contact rating 0.5A 28VDC, 0.2A 48VDC
    Current rating 0.5A @ 28VDC
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 4N
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-4mm
    Product series IP
    Protection level IP67
    Terminal type Solder
    Voltage rating 48VDC
