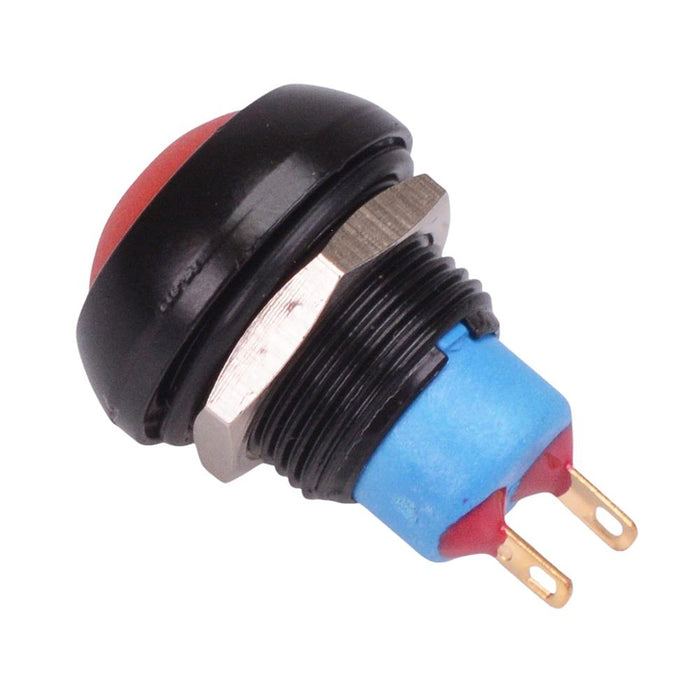

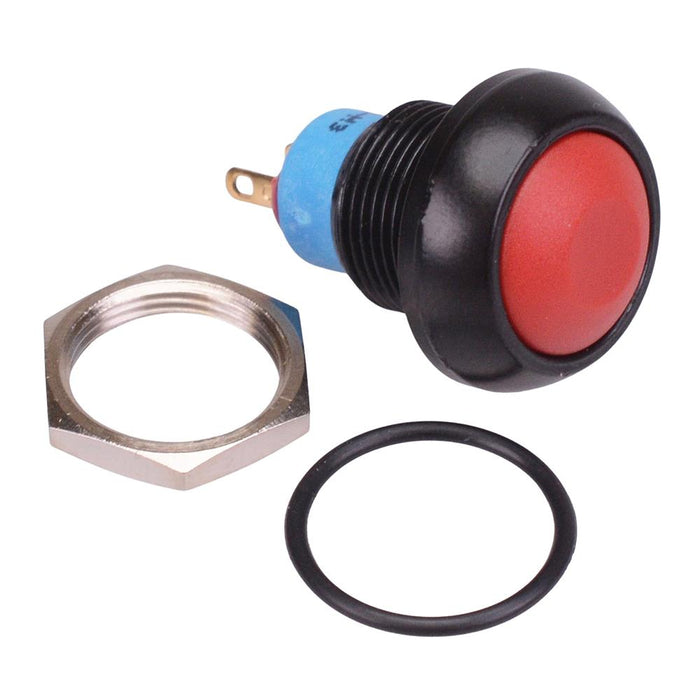

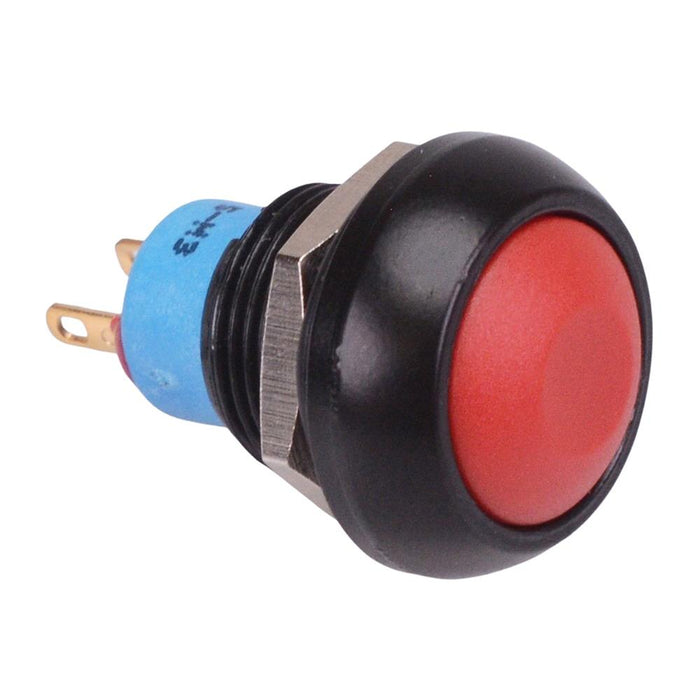

IPR3SAD6 APEM Red Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 485995
MPN: IPR3SAD6
Availability:
94 in stock
Original price
£9.32
-
Original price
£9.32
Original price
£9.32
Inc VAT
£9.32
-
£9.32
Current price
£9.32
Inc VAT
The IPR3SAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.
Momentary operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Back of panel space requirement: 17.5mm minimum Dimensions: 23.4 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 0.5A 28VDC, 0.2A 48VDC |
| Current rating | 0.5A @ 28VDC |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 4N |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IP |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 48VDC |
