IPR3SAD3L0S APEM Red LED Green Round Momentary NO Push Button Switch SPST IP67
by APEM
SKU 490000
MPN: IPR3SAD3L0S
Availability:
300 in stock
Original price
£17.74
-
Original price
£17.74
Original price
£17.74
Inc VAT
£17.74
-
£17.74
Current price
£17.74
Inc VAT

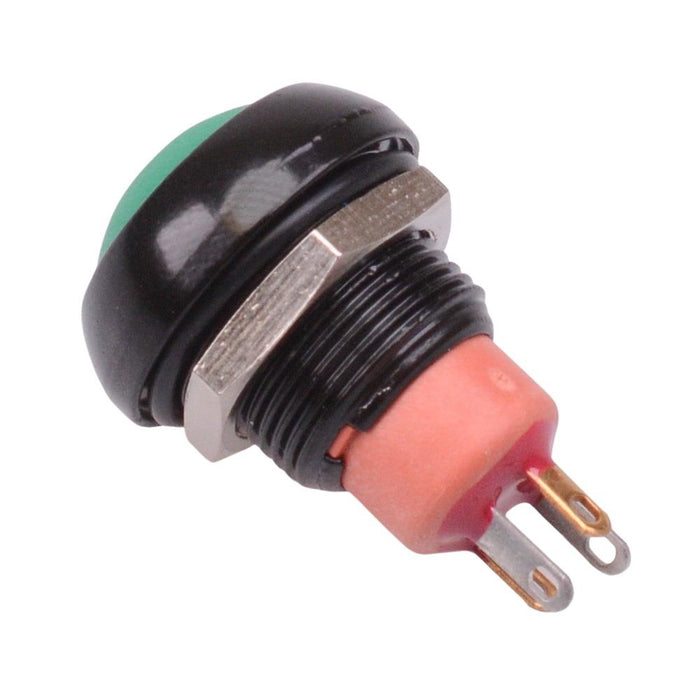

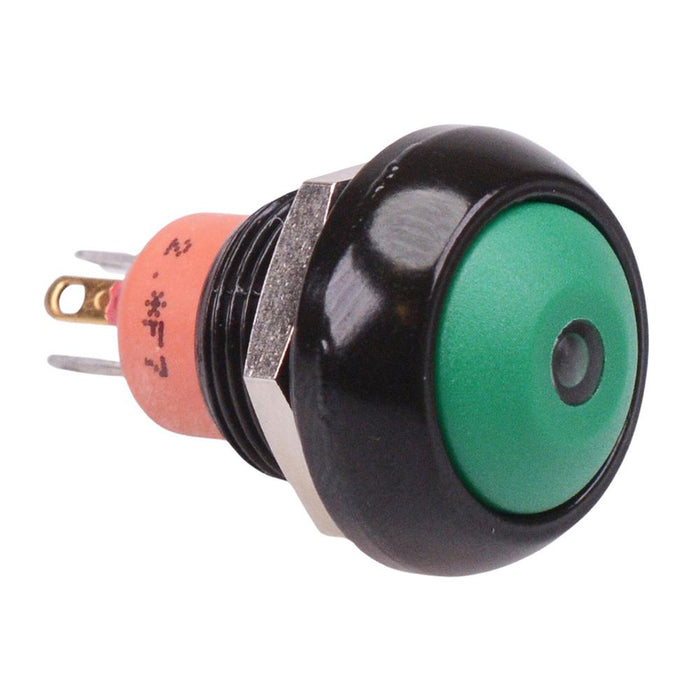

The IPR3SAD3L0S is a green momentary round push button switch with a 12mm bushing and red LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary NO operation Red LED LED forward voltage: 2.1V LED forward current: 20mA Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 2.1V |
| Material | Zinc Diecast |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 4N |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IP |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 28VDC / 48VAC |
