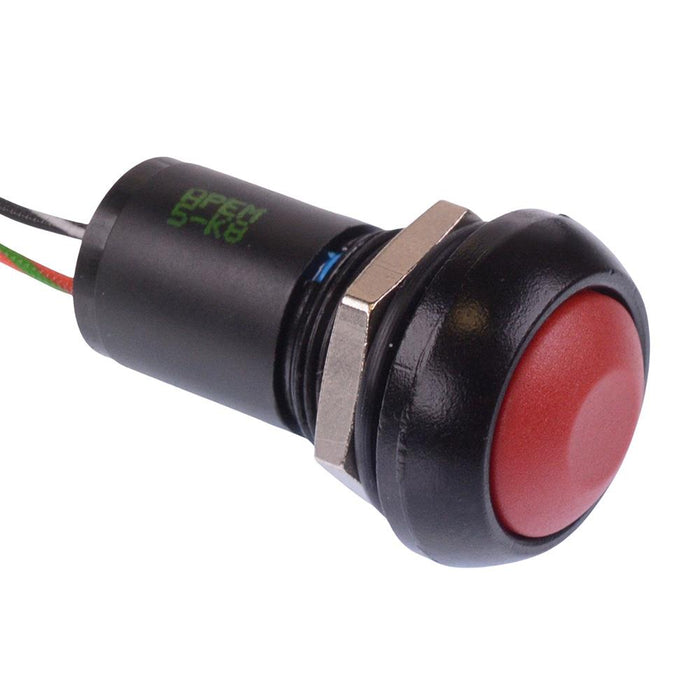

IPR3FAD6X1207-01 APEM Red Round Momentary NO 12mm Push Button Switch SPST IP67
by APEM
SKU 488197
MPN: IPR3FAD6X1207-01
Availability:
11 in stock
Original price
£14.58
-
Original price
£14.58
Original price
£14.58
£14.58
£14.58
-
£14.58
Current price
£14.58
The IPR3FAD6X1207-01 is a red button momentary round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary operation Red button SPST-NO contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm 400mm 28AWG flying leads Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 30.0 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A @ 28VDC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Zinc Diecast |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VAC/DC |
