IPC5SAD1 APEM Blue Square Momentary NO/NC 12mm Push Button Switch IP67
by APEM
SKU 489984
MPN: IPC5SAD1
Availability:
258 in stock
Original price
£14.05
-
Original price
£14.05
Original price
£14.05
£14.05
-
£14.05
Current price
£14.05

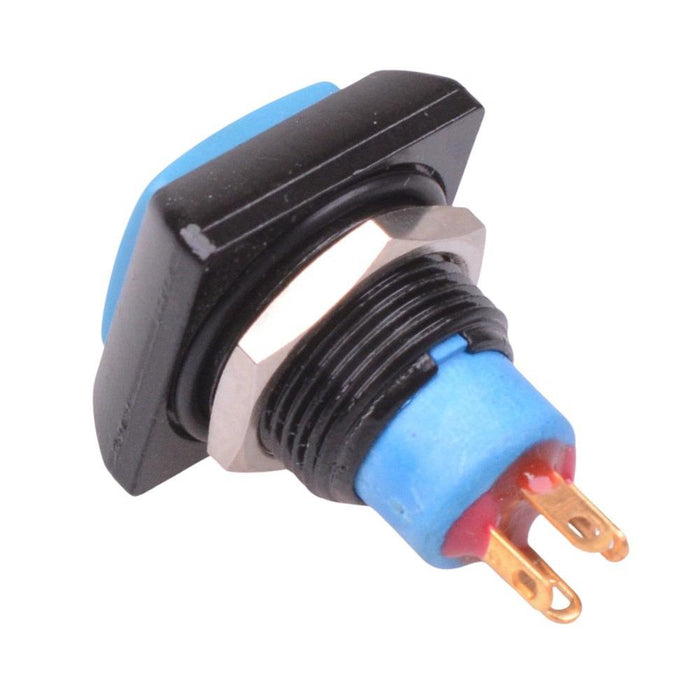

The IPC5SAD1 is a blue momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and NO/NC contacts, suitable for applications in harsh environments including automotive.
Momentary NO/NC operation Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact Configuration | NO/NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A |
| Illuminated | No |
| Material | Zinc Diecast |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VAC/DC |
