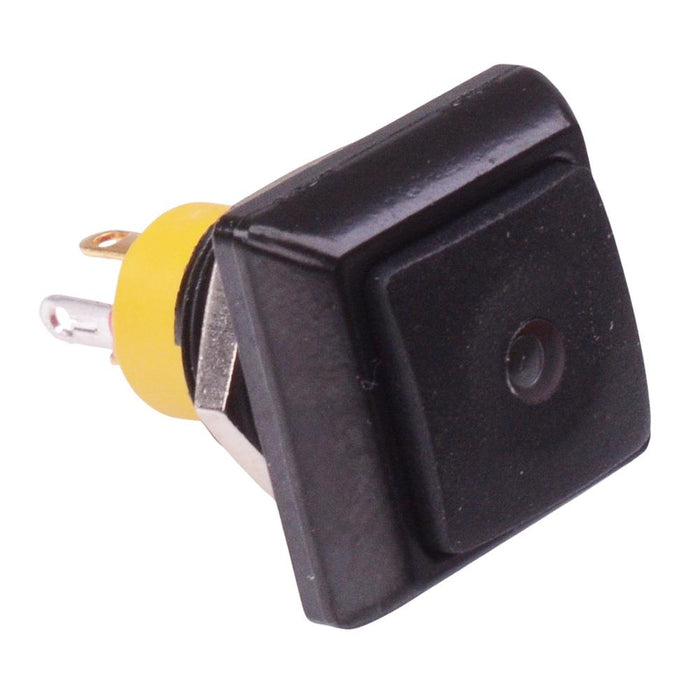

IPC3SAD2L0Y APEM Yellow LED Black Square Momentary 12mm Push Button Switch SPST IP67

by APEM
SKU 487278

MPN: IPC3SAD2L0Y

Availability:
238 in stock
Original price £5.63 - Original price £5.63
Original price
£5.63 Inc VAT
£5.63 - £5.63
Current price £5.63 Inc VAT
The IPC3SAD2L0Y is a black momentary square push button switch with a 12mm bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Momentary NO operation
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
    Current rating 5A @ 28VDC
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 2.1VDC
    Material Zinc Diecast
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-4mm
    Product series IP
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 48VAC/DC
