IPC1SAD2L0Y APEM Yellow LED Black Square Latching 12mm Push Button Switch SPST IP67
by APEM
SKU 489980
MPN: IPC1SAD2L0Y
Availability:
50 in stock
Original price
£11.52
-
Original price
£11.52
Original price
£11.52
Inc VAT
£11.52
-
£11.52
Current price
£11.52
Inc VAT

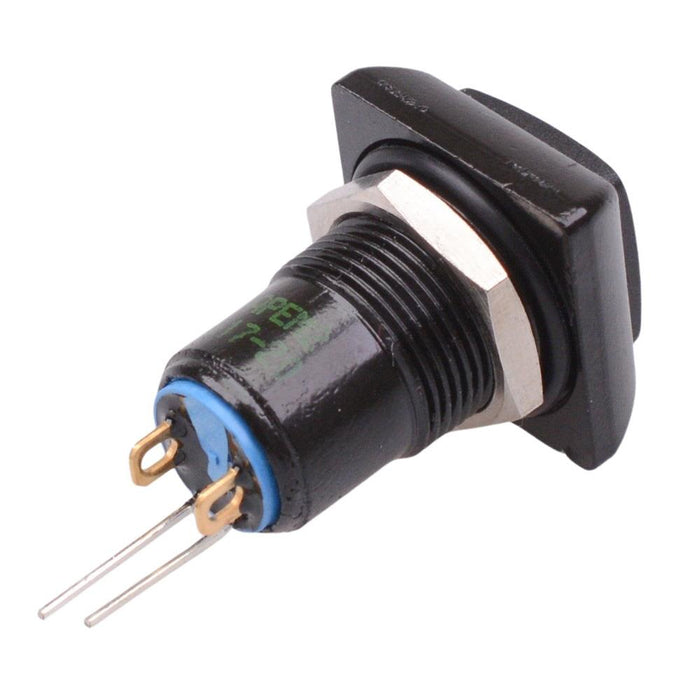

The IPC1SAD2L0Y is an illuminated black latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Black button Latching operation Yellow LED LED forward voltage: 2V LED forward current: 20mA SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts \ Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC Panel thickness: 1.5-5.5mm Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Latching |
| Colour | Yellow |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 12VDC, 3A 48VDC, 1A 72VDC |
| Current rating | 4A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 2V |
| Material | Zinc Diecast |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-5.5mm |
| Product series | IP |
| Protection level | IP67 |
| Switch operation | Off-On |
| Terminal type | Gold Plated Silver |
| Voltage rating | 72VDC |
