IMR7Z472104UL APEM White Momentary 12mm Push Button Switch SPDT IP67
by APEM
SKU 489976
MPN: IMR7Z472104UL
Availability:
100 in stock
Original price
£11.78
-
Original price
£11.78
Original price
£11.78
£11.78
-
£11.78
Current price
£11.78

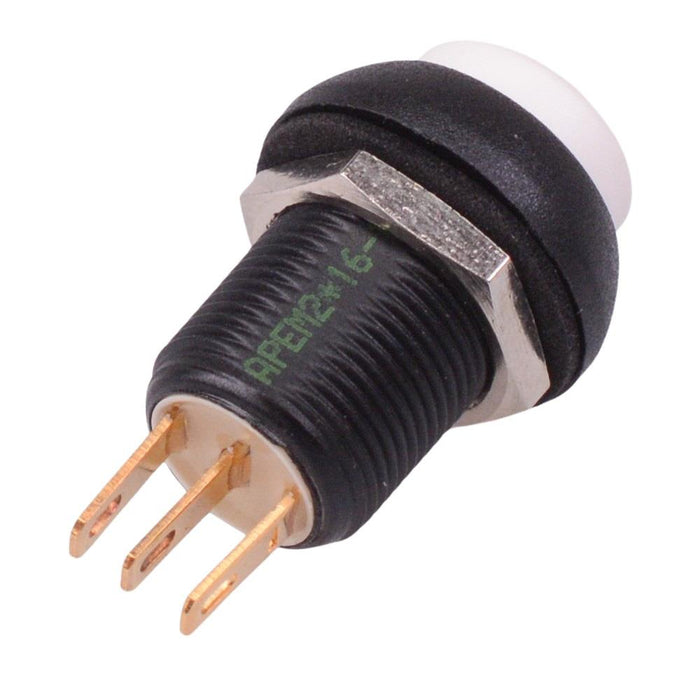

The IMR7Z472104UL is a white momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications.
Momentary operation Snap action: tactile feedback with audible click SPDT NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Quick connect terminals Rating: 3A 28VDC Panel thickness: 0.8-4.3mm Back of panel space requirement: 20mm minimum Dimensions: 31.7 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | White |
| Contact Configuration | NO/NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 28VDC |
| Current Rating | 3A |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-10mm |
| Product Series | IM |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 28VDC |
