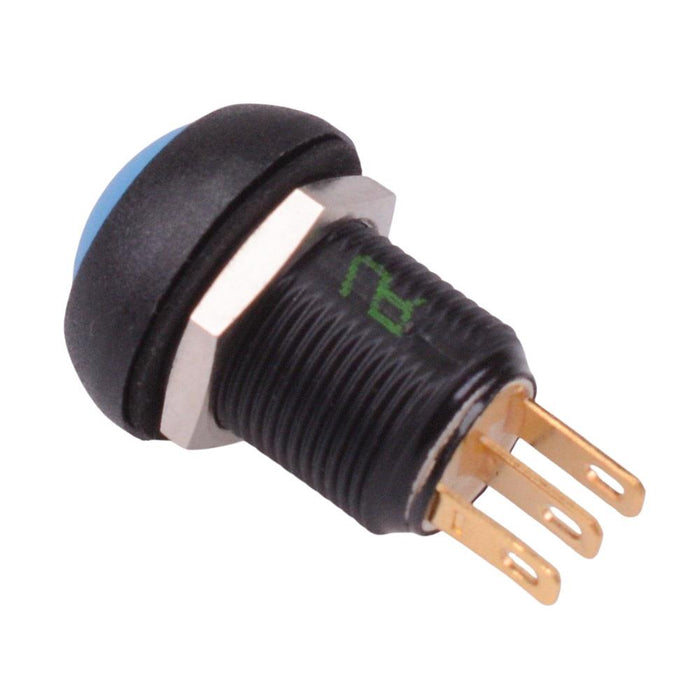

IMR7Z412UL APEM Blue Momentary 12mm Push Button Switch SPDT IP67
by APEM
SKU 489975
MPN: IMR7Z412UL
Availability:
37 in stock
Original price
£13.16
-
Original price
£13.16
Original price
£13.16
Inc VAT
£13.16
-
£13.16
Current price
£13.16
Inc VAT
The IMR7Z412UL is a blue momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications.
Momentary operation Snap action: tactile feedback with audible click SPDT NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Quick connect terminals Rating: 3A 28VDC Panel thickness: 0.8-4.3mm Back of panel space requirement: 20mm minimum Dimensions: 29.0 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact configuration | NO/NC |
| Contact material | Gold Plated Silver |
| Contact rating | 3A 28VDC |
| Current rating | 3A |
| Illuminated | No |
| Material | PA66 |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-10mm |
| Product series | IM |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 28VDC |
