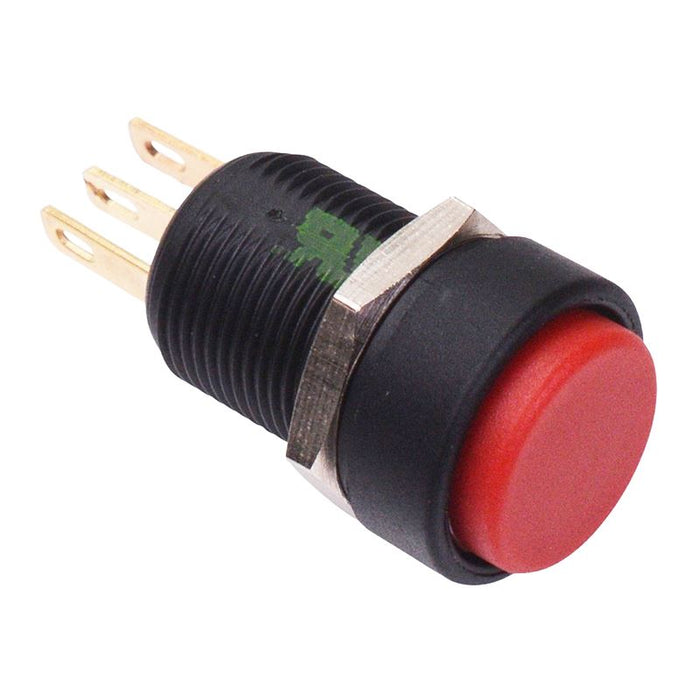

IMP7Z462234UL Red Momentary 12mm Push Button Switch SPDT IP67 APEM
by APEM
SKU 486009
MPN: IMP7Z462234UL
Availability:
7 in stock
Original price
£13.43
-
Original price
£13.43
Original price
£13.43
£13.43
-
£13.43
Current price
£13.43
The IMP7Z462234UL is a red momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features solder lug terminals and SPDT contacts, suitable for a wide range of applications.
Momentary operation Snap action: tactile feedback with audible click SPDT NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Quick connect terminals Rating: 3A 28VDC Panel thickness: 1.5-10mm Back of panel space requirement: 20mm minimum Dimensions: 25.1 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Rating | 3A 28VDC |
| Current Rating | 3A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-10mm |
| Product Series | IM |
| Protection Level | IP67 |
| Terminal Type | Quick Connect |
| Voltage Rating | 28VDC |
