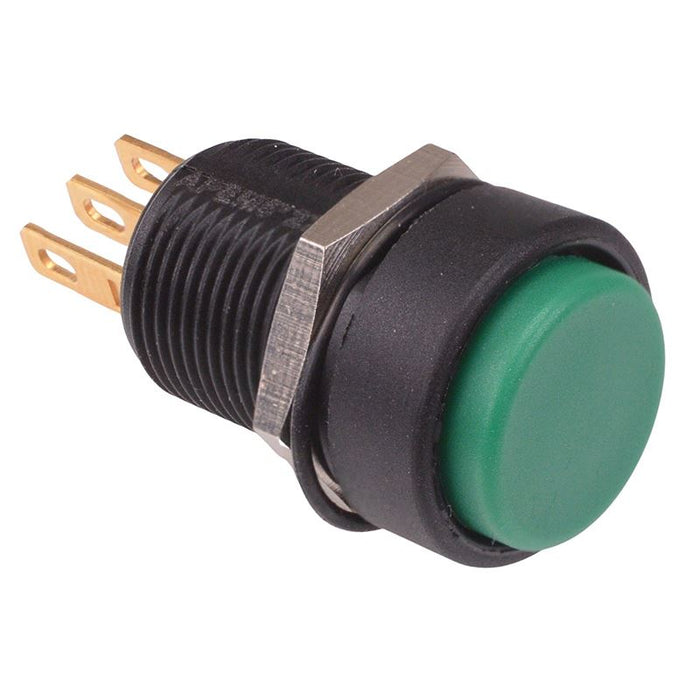

IMP7Z432234UL APEM Green Momentary 12mm Push Button Switch SPDT IP67

by APEM
SKU 486008

MPN: IMP7Z432234UL

Availability:
17 in stock
Original price £15.22 - Original price £15.22
Original price
£15.22 Inc VAT
£15.22 - £15.22
Current price £15.22 Inc VAT
The IMP7Z432234UL is a green momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features solder lug terminals and SPDT contacts, suitable for a wide range of applications.

  • Momentary operation
  • Snap action: tactile feedback with audible click
  • SPDT NO/NC contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 3A 28VDC
  • Panel thickness: 1.5-10mm
  • Back of panel space requirement: 20mm minimum
  • Dimensions: 25.1 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration SPDT
    Contact rating 3A 28VDC
    Current rating 3A
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-10mm
    Product series IM
    Protection level IP67
    Terminal type Quick Connect
    Voltage rating 28VDC
