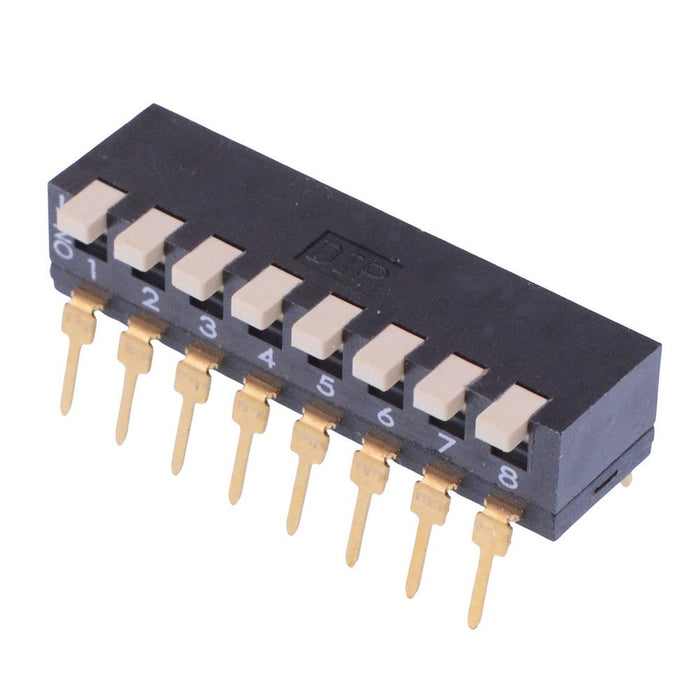

IKP0800101 APEM 8-Way 2.54mm Piano PCB DIP Switch SPST

by APEM
SKU 487831

MPN: IKP0800101

Availability:
493 in stock
Original price £0.90 - Original price £0.90
Original price
£0.90 Inc VAT
£0.90 - £0.90
Current price £0.90 Inc VAT
The IKP0800101 is a 8 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features 5mm height from the PCB and 25mA 24VDC switch rating, suitable for through hole PCB applications.

  • 8 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Through hole gold plated terminals
  • 2.54mm pitch
  • Tape seal
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold Plated
    Contact rating 100mA 50VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Material Nylon
    Mounting style Through Hole
    Number of positions 2
    Number of ways 8
    Operating temperature -40°C to +85°C
    Pitch 2.54mm
    Product series IKP
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
