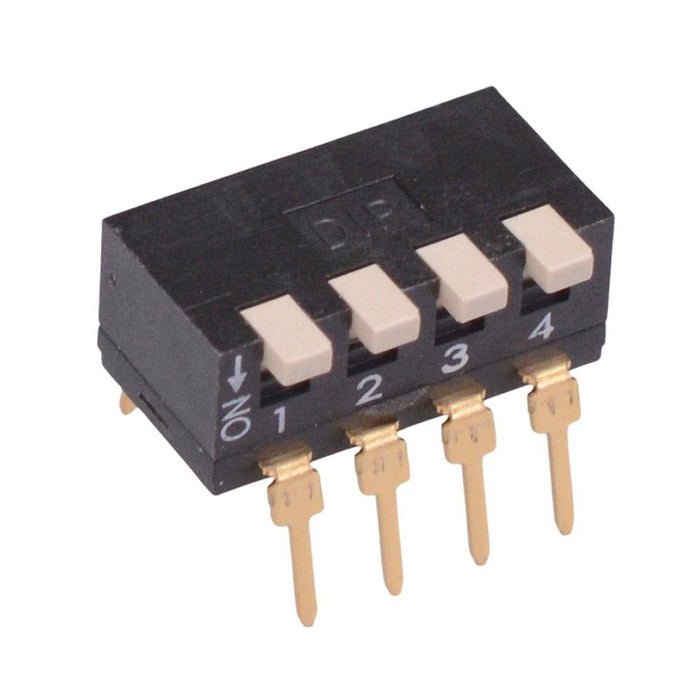

IKP0400101 4-Way Through Hole 2.54mm DIP Switch SPST APEM
by APEM
SKU 492508
MPN: IKP0400101
Availability:
1000 in stock
Original price
£1.13
-
Original price
£1.13
Original price
£1.13
£1.13
-
£1.13
Current price
£1.13
The IKP0400101 is a 4 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for surface mount PCB applications.
Raised actuator 4 ways Switch rating: 25mA 24VDC Gold plated terminals 2.54mm pitch Self-cleaning wiping contacts Overall height from PCB 5.0mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 4 |
| Operating Force | 7.84N Max |
| Operating Temperature | -20°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
