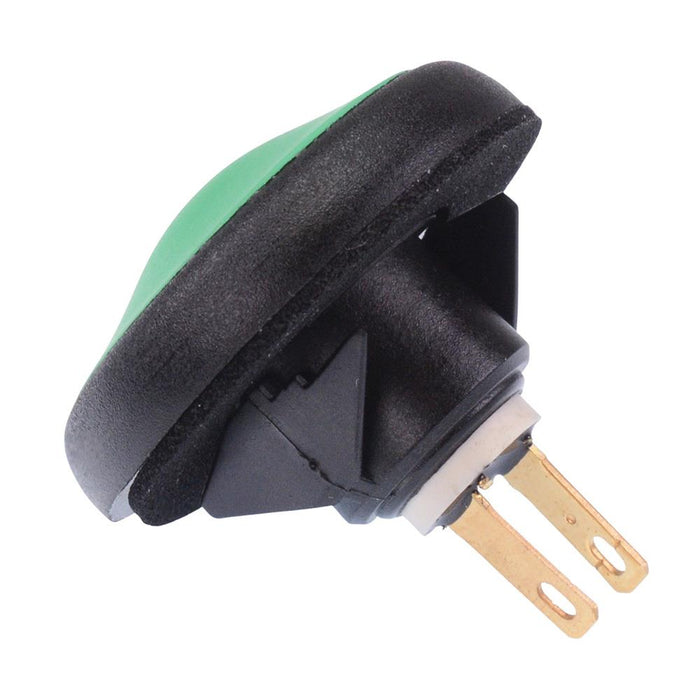

IFB3Z1AD300 APEM Green Momentary Snap-In Membrane Push Button Switch SPST IP67

by APEM
SKU 487500

MPN: IFB3Z1AD300

Availability:
116 in stock
Original price £10.89 - Original price £10.89
Original price
£10.89 Inc VAT
£10.89 - £10.89
Current price £10.89 Inc VAT
The IFB3Z1AD300 is a green sealed push button switch with a 25mm actuator and polyamide actuator which depresses when the switch is actuated. The membrane is press fittd onto the bushing which prevents the ingress of liquid or dust. The switch is suited for equipment exposted to bad weather and most notably frost.

  • Green 25mm diameter actuator
  • Momentary operation
  • SPST contacts
  • Snap-in mounting
  • Sealed to IP54
  • Panel cut-out: 16mm
  • 2.8m quick connect/solder terminals
  • Rating: 400mA 32VAC, 100mA 48VDC
  • Panel thickness: 0.8-2.5mm
  • Dimensions: 21 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 0.4A 32VAC, 0.1A 48VDC
    Current rating 0.4A @ 32VAC
    Electrical life 500,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Thermoplastic
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 6.5N
    Operating temperature -20°C to +85°C
    Panel cut out 16mm
    Panel thickness 0.8-2.5mm
    Product series IF
    Protection level IP54
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 32VAC / 48VDC
