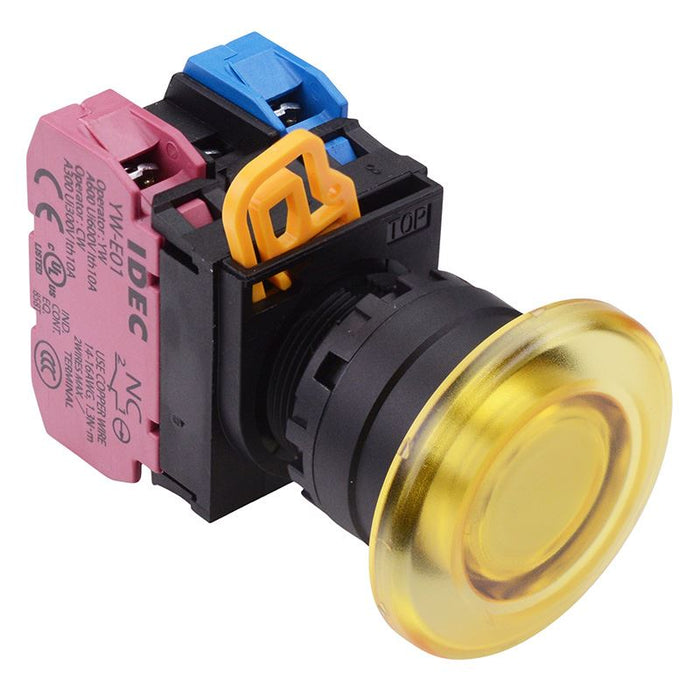

IDEC Yellow 24V illuminated 22mm Mushroom Maintained Push Button Switch 1NO-1NC IP65 YW1L-A4E11Q4Y
by IDEC
SKU 931866
MPN: YW1L-A4E11Q4Y
Availability:
10 in stock
Original price
£21.12
-
Original price
£21.12
Original price
£21.12
Inc VAT
£21.12
-
£21.12
Current price
£21.12
Inc VAT
The YW1B-A4E11Q4Y is an illuminated yellow maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
1NO-1NC contacts 24V LED illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back order lead time | 10 Days |
Colour | Yellow |
Contact configuration | 1NO-1NC |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Mushroom |
Illuminated | Yes |
Illumination colour | Green |
Illumination voltage | 24V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Rated thermal current | 10A |
Terminal type | Screw |
Voltage rating | 600V |
