IDEC Yellow 22mm Mushroom Momentary Push Button Switch 2NC IP65 YW1L-M4E02Q0Y

by IDEC
SKU 931734

MPN: YW1L-M4E02Q0Y

Availability:
17 in stock
Original price £11.03 - Original price £11.03
Original price
£11.03 Inc VAT
£11.03 - £11.03
Current price £11.03 Inc VAT

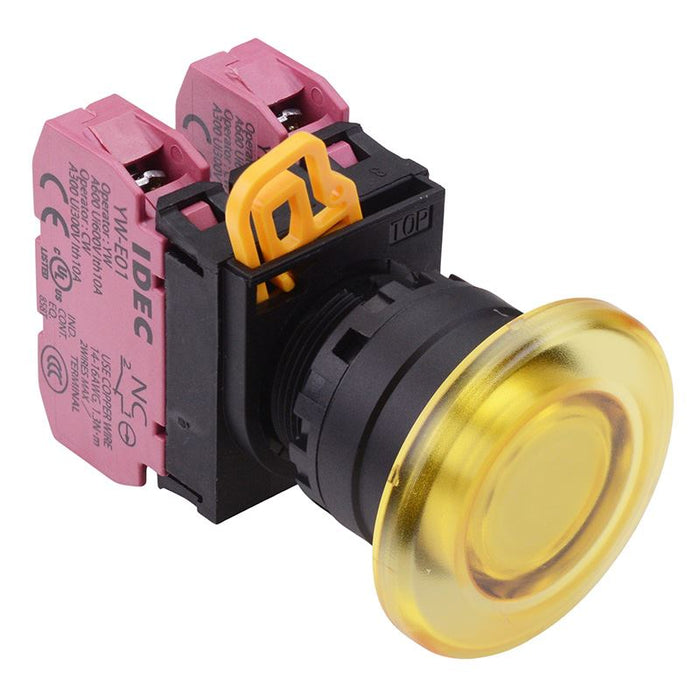

The YW1B-M4E02Q0Y is a yellow momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 2NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 40mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Yellow
    Contact configuration 2NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Mushroom
    Illuminated No
    Illumination colour Yellow
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
