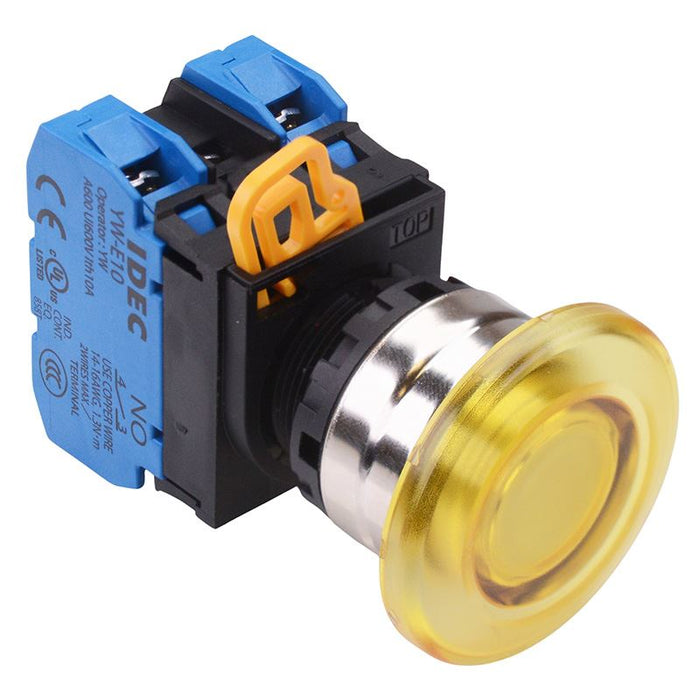

IDEC Yellow 12V illuminated 22mm Metal Bezel Mushroom Momentary Push Button Switch 2NO IP65 YW4L-M4E20Q3Y
by IDEC
SKU 932535
MPN: YW4L-M4E20Q3Y
Availability:
Only 1 left!
Original price
£22.90
-
Original price
£22.90
Original price
£22.90
Inc VAT
£22.90
-
£22.90
Current price
£22.90
Inc VAT
The YW4B-M4E20Q3Y is an illuminated yellow momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 2NO contacts 12V LED illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Colour | Yellow |
Contact configuration | 2NO |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Mushroom |
Illuminated | Yes |
Illumination colour | Amber |
Illumination voltage | 12V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Terminal type | Screw |
Voltage rating | 600V |
