XA1E-BV313R XA-16mm Emergency Stop Switch 29mm Mushroom 1NO-3NC IDEC

by IDEC
SKU 485714

MPN: XA1E-BV313R

Availability:
20 in stock
Original price £0
Original price £39.29 - Original price £39.29
Original price
Current price £39.29(inc. VAT)
£39.29 - £39.29
Current price £39.29
 More payment options
Quantity Discounts
Buy 10 - 24Get 11% off£34.97(inc. VAT) each
Buy 25 - 49Get 16% off£33.00(inc. VAT) each
Buy 50 - 99Get 21% off£31.04(inc. VAT) each
Buy 100+Get 25% off£29.47(inc. VAT) each

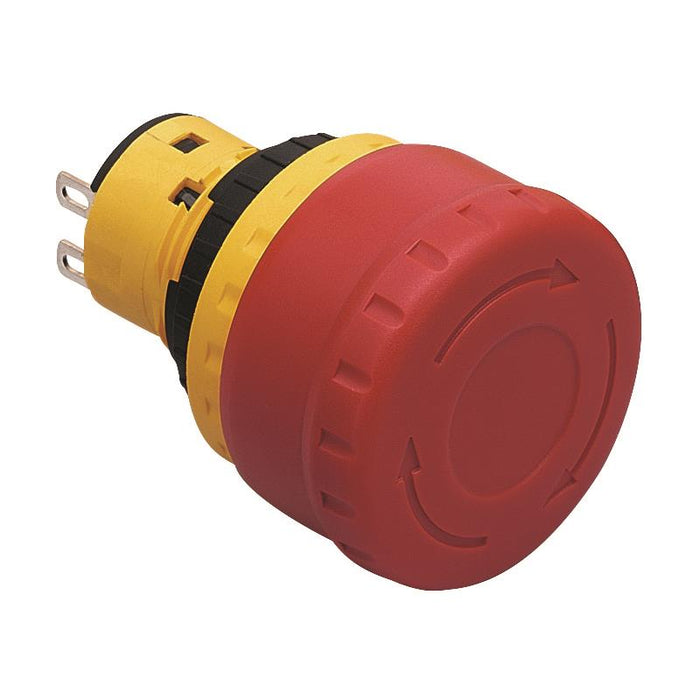

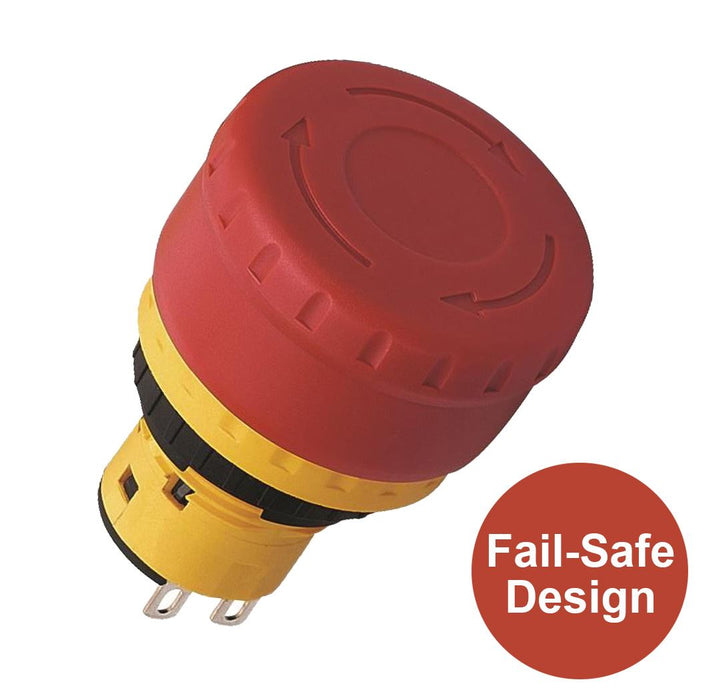

The XA1E-BV313R is a 16mm E-stop switch manufactured by IDEC, featuring a 29mm mushroom head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.

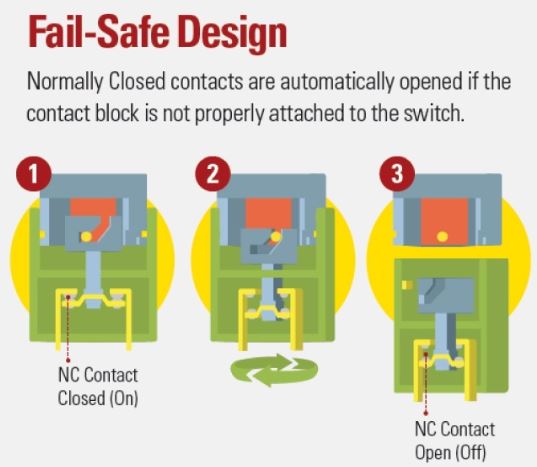

IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.

  • 1NO-3NC contacts
  • 16mm panel hole diameter
  • IP65 protection level
  • Screw terminals
  • 29mm mushroom head
  • 5A 300VAC rating
  • RU, TUV, CE, CCC certification
Specification
Actuation Twist Release
Back Order Lead Time 10 Days
Colour Red
Contact Configuration 1NO-3NC
Contact Rating 5A 300VAC
Current Rating 5A
Illuminated No
Mounting Style Panel
Number of Positions 2
Panel Cut Out 16mm
Product Series XA
Protection Level IP65
Terminal Type Screw
Voltage Rating 300V
