IDEC White 24V LED Panel Mount Indicator YW1P-1BUQ4PW

by IDEC
SKU 485701

MPN: YW1P-1BUQ4PW

Availability:
10 in stock
Original price £6.96 - Original price £6.96
Original price
£6.96 Inc VAT
£6.96 - £6.96
Current price £6.96 Inc VAT

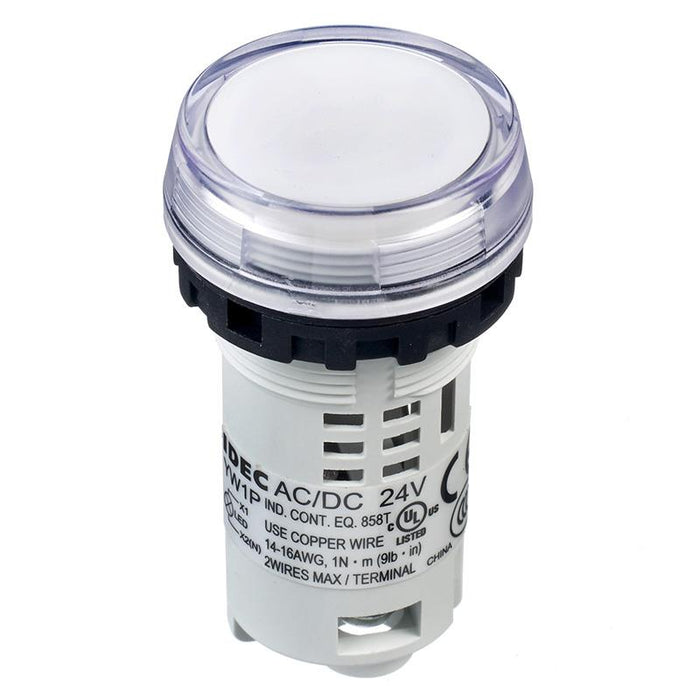

The YW1P-1BUQ4PW is a unibody white 24V LED panel mount indicator from the YW range by IDEC. The indicator features a flush head and IP65 protection level, suitable for use in harsh wearing industrial applications. The innovative unibody design eliminates the need for additional contact blocks or light modules.

  • LED Lamp
  • Screw terminals
  • Voltage: 24V AC/DC
  • Panel cut-out diameter: 22mm
  • Forward current: 20mA
  • Panel thickness: 0.8-6mm
  • Dimensions: 52 x 29.8mm (height x diameter)
  • Specification
    Back order lead time 10 Days
    Colour White
    Diameter 29.8mm
    Forward current 20mA
    Lamp type LED
    Length 52mm
    Mounting type Panel Mount
    Operating temperature -20°C to +55°C
    Panel cut out 22mm
    Panel thickness 6mm
    Protection level IP65
    Voltage rating 24VAC/DC
    Request a quote
