IDEC White 22mm Metal Bezel Mushroom Maintained Push Button Switch 1NO-1NC IP65 YW4B-A4E11W

by IDEC
SKU 932289

MPN: YW4B-A4E11W

Availability:
Out of stock
Sold out
Original price £16.11 - Original price £16.11
Original price
£16.11 Inc VAT
£16.11 - £16.11
Current price £16.11 Inc VAT

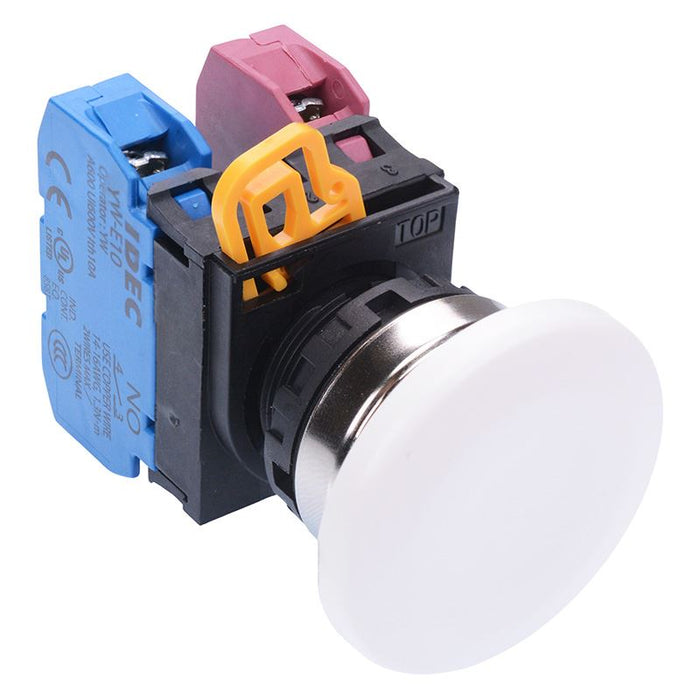

The YW4B-A4E11W is a white maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 1NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 40mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Colour White
    Contact configuration 1NO-1NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Mushroom
    Illuminated No
    Illumination colour Green
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Terminal type Screw
    Voltage rating 600V
